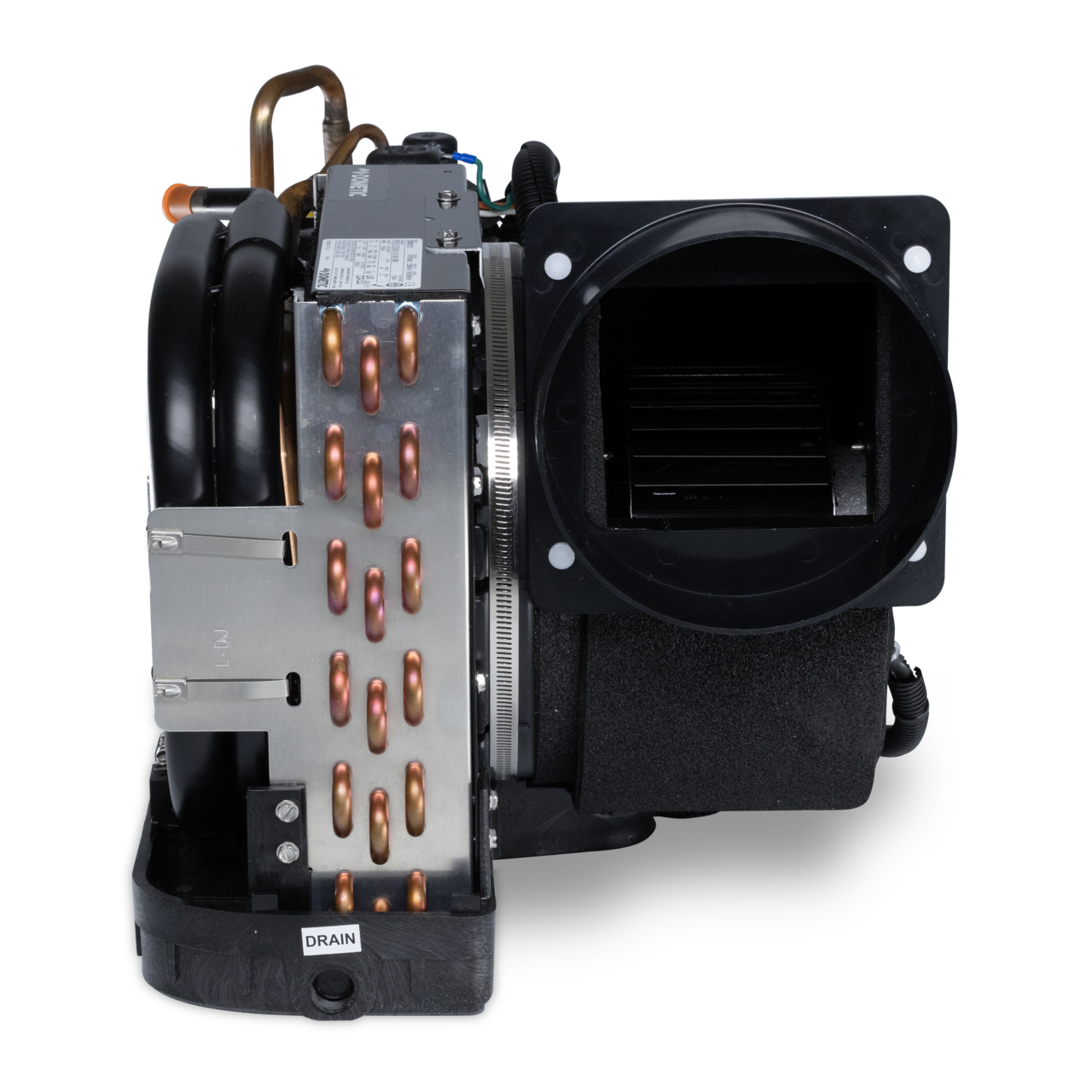

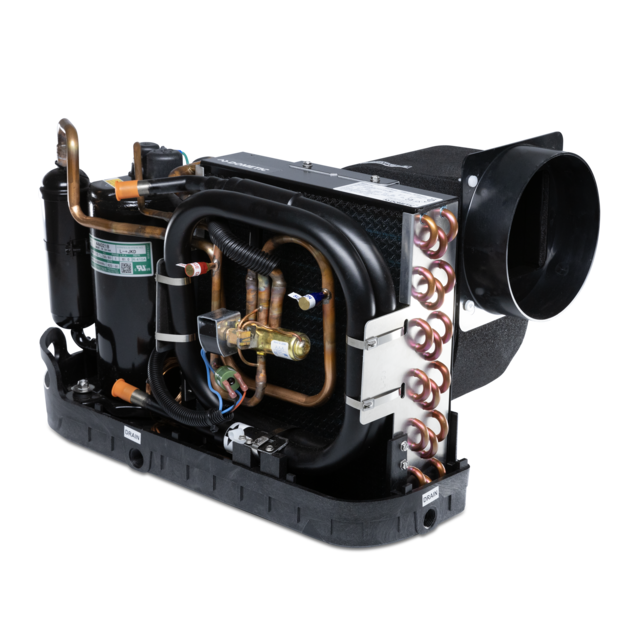

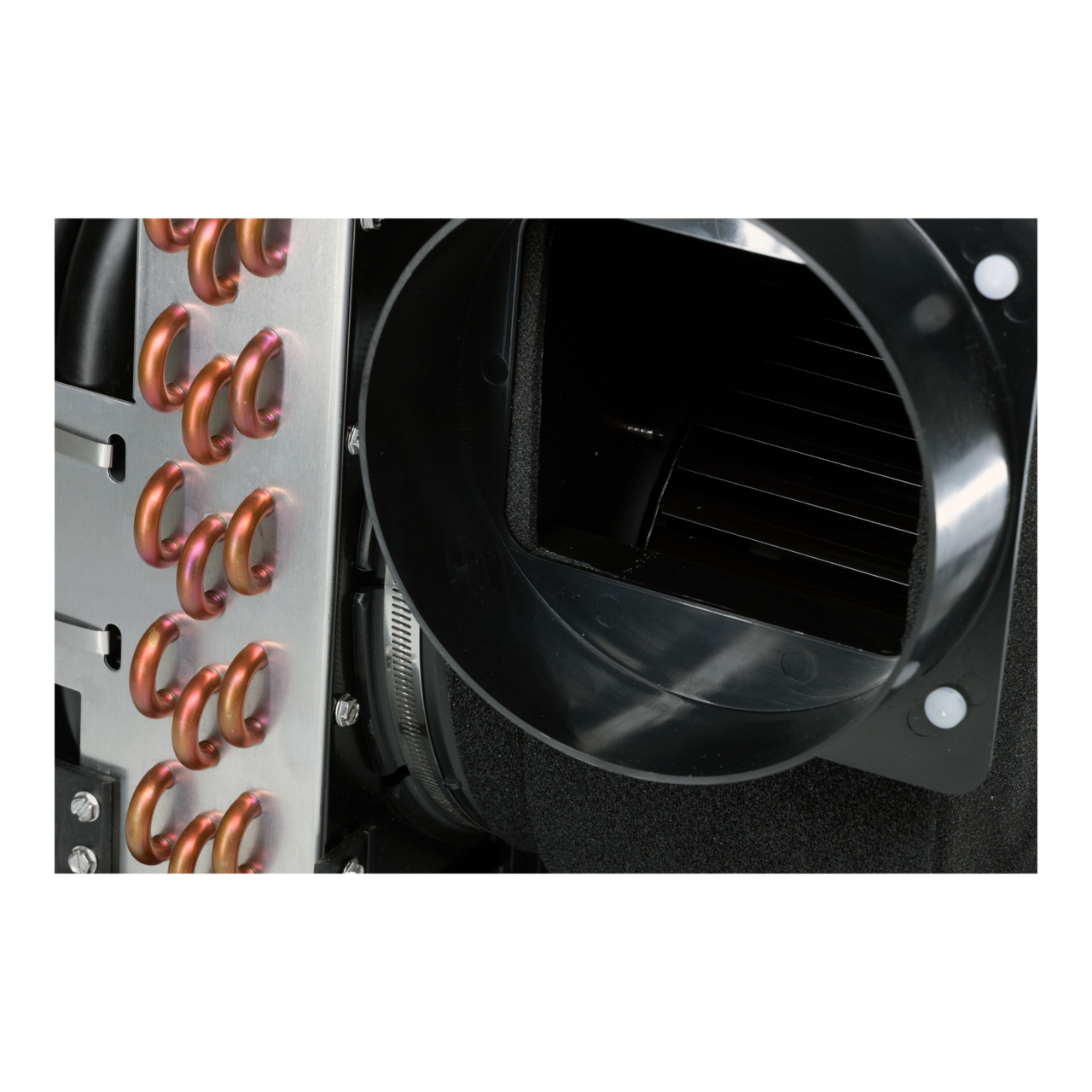

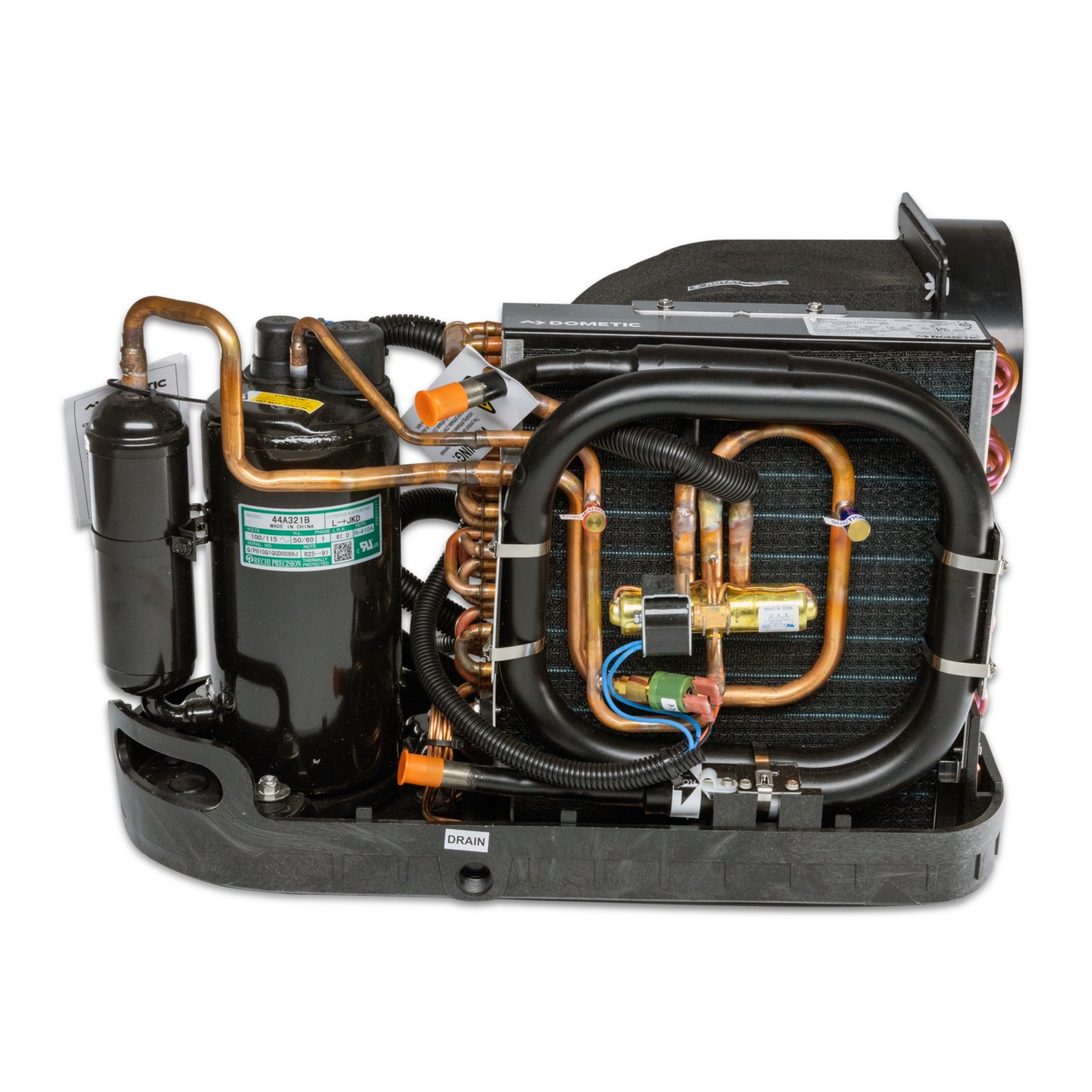

Dometic GT16 115 Volts 16000 BTU R-454B Self-Contained w/Passport I/O Display
Part Number: 207500156 / 9610007636
Model: GT16-1171-454 7MR DGLC
The Dometic self-contained air conditioning system uses R-454b refrigerant with minimized environmental impact. With our robust corrosion-resistant Titanium coils, the GTX heats and cools swiftly and silently. The rust-free composite drain pan ensures a clean and durable design. Experience unparalleled comfort and efficiency on the water with our cutting-edge product.
Features:
- Engineered to maximize the performance of R-454B refrigerant
- Available in 230V 50Hz, 230V 60Hz, 115V 60Hz
- Up to 21% increased cooling capacity and up to 27% more energy efficient
- Designed from the inside out with multiple patented innovations
- Compact design uses less space
- Vibration-isolation mounts reduce noise and vibration
- Rust-free composite drain pan
- Robust titanium condenser
Dimensions:
| Max Height (in/cm) | 13.3/33.8 |
| Max Width | 21.5/54.6 |
| Max Depth | 21.5/54.6 |
Specifications:
| Capacity (BTU/h) | 16000 |
| Voltage (VAC) | 115 |
| Cycle (Hz) /Phase (Ph) | 50/60Hz 1 Phase |
| Full Load Amps (FLA) Cool (A) | 10.4(60hz) |
| Full Load Amps (FLA) Heat (A) | 13.6 |
| Full Load Amps (FLA) Blower (A) | 0.78 |
| Locked Rotor Amps (LRA) | 62 |
| Max. Circuit Breaker (A) | 40 |
| Min Circuit Ampacity (A) | 25 |
| Refrigerant Type | R454B |
| Min. Duct Size Dia. (in/cm) | 7/17.8 |
| Min. Supply Air Grille (sq in/cm) | 80/516 |
| Min Return Air Grille (sq in/cm) | 160/1032 |
| Net Weight (lbs./ kg) | 58.0/26.3 |
| Gross Weight (lbs./ kg) | 67.0/30.4 |
Optional Equipment:
| SmartTouch Display |  |
| Domoetic VMD 2.5" Display |  |
| EasyTouch Display |  |
| Elite II Display |  |
| SmartStart |  |
| Compressor Cover |  |
| Dometic BREATHE 4500 |  |
