Dometic GT10 115 Volts 10,000 BTU R-454B Self-Contained w/Passport I/O Display
Part Number: 207500154 / 9610007634
Model: GT10-1171-454 7MR DGLC
The Dometic self-contained air conditioning system uses R-454b refrigerant with minimized environmental impact. With our robust corrosion-resistant Titanium coils, the GTX heats and cools swiftly and silently. The rust-free composite drain pan ensures a clean and durable design. Experience unparalleled comfort and efficiency on the water with our cutting-edge product.
Features:
- Engineered to maximize the performance of R-454B refrigerant
- Available in 230V 50Hz, 230V 60Hz, 115V 60Hz
- Up to 21% increased cooling capacity and up to 27% more energy efficient
- Designed from the inside out with multiple patented innovations
- Compact design uses less space
- Vibration-isolation mounts reduce noise and vibration
- Rust-free composite drain pan
- Robust titanium condenser

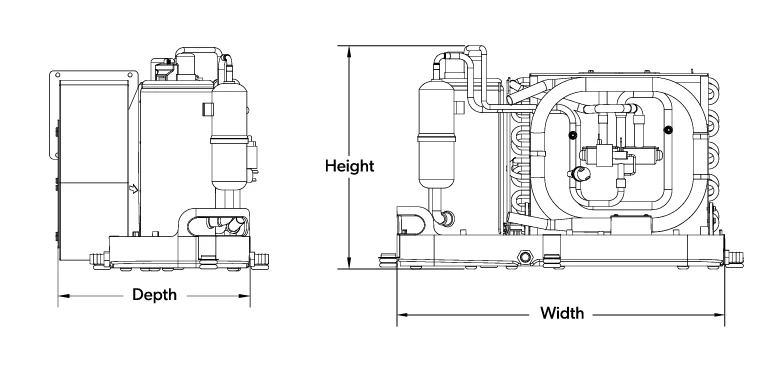

Dimensions:
| Max Height (in/mm) | 13/331 |
| Max Width | 20.4/519 |
| Max Depth | 12.4/315 |
Specifications:
| Capacity (BTU/h) | 10000 |
| Voltage (VAC) | 115 |
| Cycle (Hz) /Phase (Ph) | 50/60Hz 1 Phase |
| Full Load Amps (FLA) Cool (A) | 6.7 (60hz) |
| Full Load Amps (FLA) Heat (A) | 8.8 |
| Full Load Amps (FLA) Blower (A) | 0.61 |
| Locked Rotor Amps (LRA) | 42 |
| Max. Circuit Breaker (A) | 25 |
| Min Circuit Ampacity (A) | 16 |
| Refrigerant Type | R454B |
| Min. Duct Size Dia. (in/mm) | 6/153 |
| Min. Supply Air Grille (sq in/cm) | 60/388 |
| Min Return Air Grille (sq in/cm) | 100/646 |
| Net Weight (lbs./ kg) | 53.0/24.0 |
| Gross Weight (lbs./ kg) | 53.0/24.0 |
Optional Equipment:
| SmartTouch Display |  |
| Domoetic VMD 2.5" Display |  |

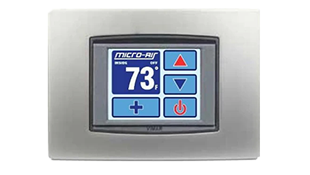

| EasyTouch Display |  |

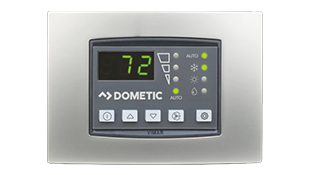

| Elite II Display |  |
| SmartStart |  |
| Compressor Cover |  |

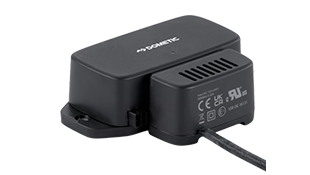

| Dometic BREATHE 4500 |  |
