X-Caliber – 12-24V DC Pressure Pump

2 reviews Write a Review

Out of stock

Calculated at Checkout

X-Caliber – 12-24V DC Water Pressure Pump
Quiet, reliable, blasting water pressure. Combining advanced DC motor and control technology with a proven self-priming centrifugal pump, the X-caliber surges past the competition with a flood of features. A built in microprocessor interfaced with a rugged ceramic temperature and pressure sensor provides variable speed operation, prevents dry running damage and ensures complete electrical protection.

Control Panel:
Program power and pressure settings via the integrated control panel. Four colored LED’s display current settings and alarm conditions.

Advanced Features:

  • Adjustable cut in pressure
  • Adjustable power setting
  • Operates on 12 or 24VDC
  • Over voltage protection
  • Under voltage protection
  • Over current protection
  • Anti-flooding protection
  • Dry run protection
  • Variable Speed

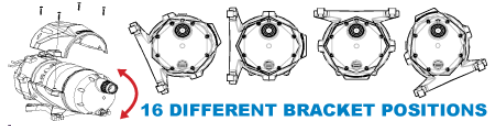

  • Rotating bracket

Product Details/Specifications:

  • Liquid Temp
  • 32°F (0°c)-104°F (40°c)
  • Ambient Temp
  • 32°F (0°c)-122°F (50°c)
  • Max Pressure 67 PSI (4.5 bar)
  • Max Flow 10 GPM (38 lpm)
  • Suction/Discharge 3/4” FPT (Optional metric adapter)
  • Weight 16lbs (7.2 kg)

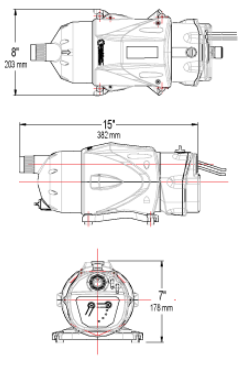

  • Dimensions 15”(382mm)L 8”(203mm)W 7”(178mm)H
