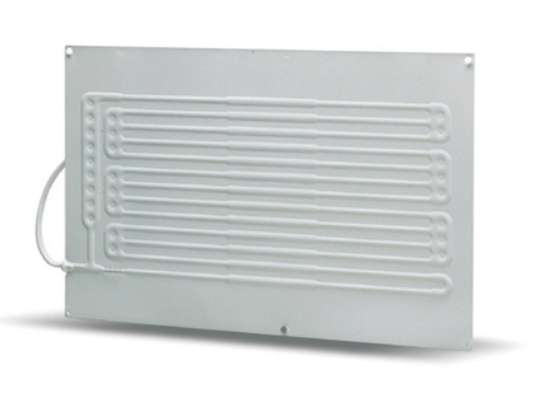

Vitrifrigo Pressed white aluminum evap, Flat 23-1/8"L x 13-5/8" W PT13
Flat evaporators can be easily installed and provide a multitude of different cooling requirements, due to the ability to bend them to fit into the refrigerated compartment. When installing, always use the stand-offs and provided holes in the plate evaporator.
Specifications
| Overall width (In.) | 23 1/6 |
| Overall height (In.) | 13 9/16 |
| No quick couplings version code | PT13 |
| Quick couplings version code | PT13-Q |
Features
Lineset
available models:
LINESET-1M-PT-Q (3.3 Cu.Ft)
LINESET-3M-PT-Q (9.8 Cu.Ft)
LINESET-4M-PT-Q (13.1 Cu.Ft)
optional for PT, S series and keel coolers
LINESET-1M-PT-Q (3.3 Cu.Ft)
LINESET-3M-PT-Q (9.8 Cu.Ft)
LINESET-4M-PT-Q (13.1 Cu.Ft)
optional for PT, S series and keel coolers
Cooling system combination chart
New units are warranted for a period of two (2) years from the date of installation or sale, for all parts, except the compressor. The compressor, only, is warranted for a period of three (3) years from the date of installation or sale.
