Village Marine LTM-800 230V 50Hz 800GPD 90-6051

Price: $8,541.25
No reviews yet Write a Review
SKU:
90-6051
Condition:
New
Shipping:
$195.00 (Fixed Shipping Cost)

Village Marine LTM-800 230V 50hz - 800 GPD Watermaker - 90-6051 - Membranes are included

Village Marine LTM Series was designed for those sailors looking for simplicity and maximun reliability. Straightforward operation makes it a breeze for anyone to use and install regardless of their experience with watermakers.



Standard Features:

  • Includes membranes
  • Magnetic drive boost pump
  • Uses high quality spiral wound TFC reverse
          osmosis membranes
  • Powder coated mounting brackets included
  • Cleanable prefilter
  • Control manifold pressure regulator ensures consistent
          pressure and prevents over or under pressurization of
          the unit. Adjustable to allow operation in brackish or
          fresh water
  • Stainless steel glycerin filled pressure gauges
  • High pressure plunger pump with stainless steel
         316 head



Sepecifications:

Model Part Number  Electrical Supply  Capacity Weight
LTM-800 230V 90-6051 230V/50hz 33gal./h - 125 Liters/h 110 LBS / 45Kg



Consumables & Spares:

Part Number Descrition
33-0238 Membrane (2)
85-0050 Pump Oil
33-0117 5 Micron Filter (up to model 800)
33-0052 5 Micron Filter (model 1000 and up)
33-0311 Carbon Flush Filter
33-0238 Membrane Element
90-0005 Filter Housing O-Ring (up to model 800)
33-0271 Filter Housing O-Ring (model 1000 and up)
90-2512 Membrane O-Ring Kit
40-0241 Salinity Probe
85-0102 Cleaning Kit
85-0103 Preservation Kit

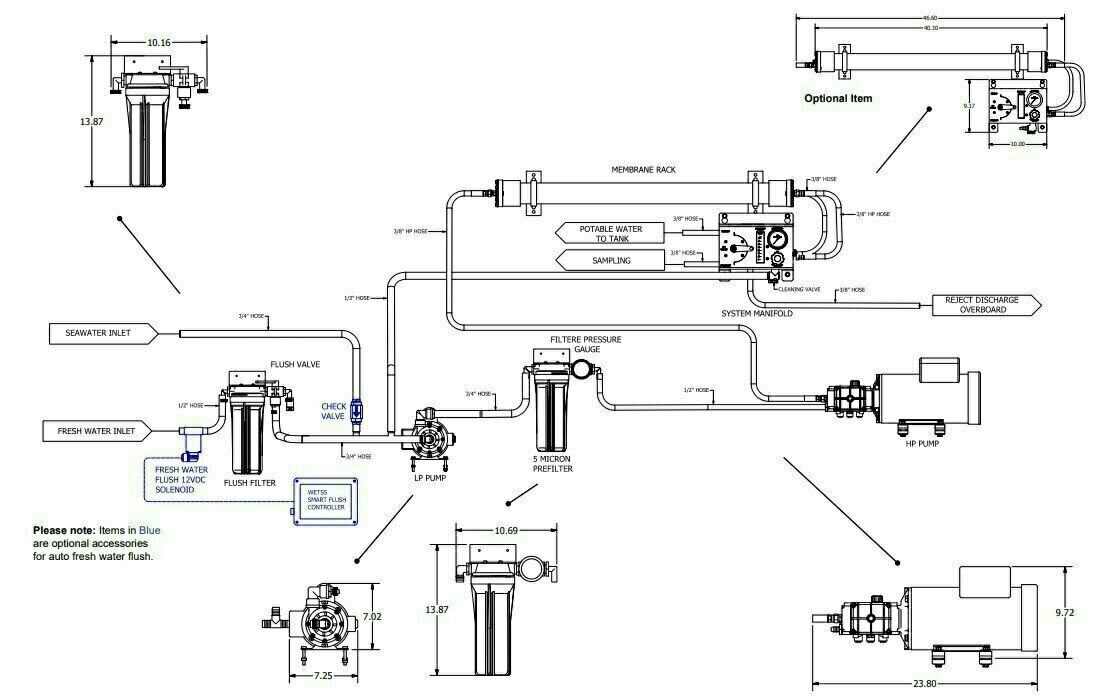

Connection diagram:



Optional equipent:

Salinity Monitor & Diversion Valve

12 VDC: 90-0081
110 VAC: 90-0115
220 VAC: 90-0116
