Victron Phoenix Inverter 24/250 120V VE Direct NEMA GFCI UL458 - PIN242510510

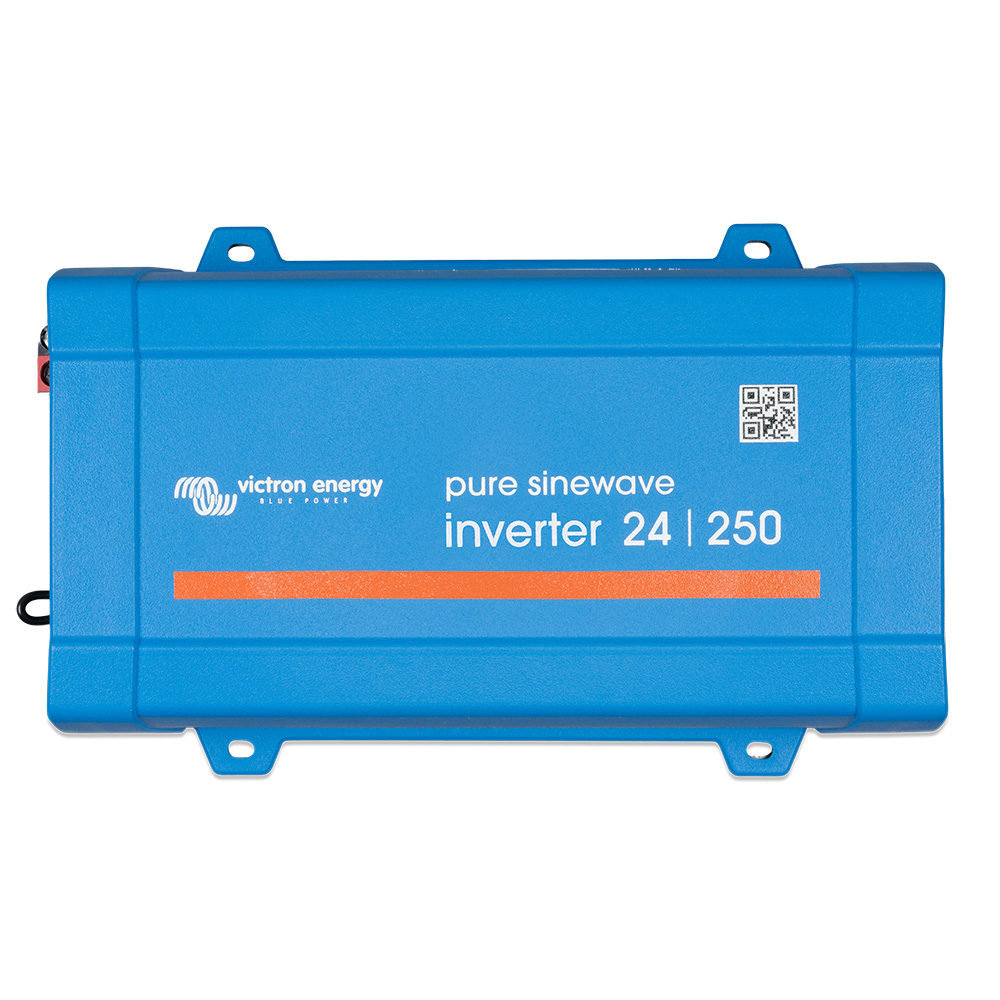

Victron Phoenix Inverter 24/250 120V VE Direct NEMA GFCI UL458

Model: PIN242510510

The Victron Phoenix VE.Direct inverter series delivers reliable, pure sine wave AC power from 12V, 24V, or 48V battery systems—ideal for marine, RV, and off-grid applications. Available in power ratings from 250VA to 1600VA, these inverters offer exceptional efficiency, low standby consumption, and full protection for your sensitive electronics.

Features:

• Pure sine wave output – Safely powers sensitive electronics
• VE.Direct communication – Monitor and configure via USB (separate VE.Direct to USB cable required) or Bluetooth with the VictronConnect app (separate VE.Direct Smart Bluetooth Dongle required)
• ECO mode – Minimizes standby consumption to save battery life
• High surge capacity – Starts inductive loads like compressors and pumps
• Full electronic protection – Includes overload, short circuit, and temperature safeguards
• NEMA 5-15R or GFCI outlet – GFCI models are UL 458 listed for added safety

Specifications:

• Input voltages: 12V, 24V, or 48V (depending on model)
• Output voltage: 120V ±3%, 60Hz ±0.1% (adjustable)
• No-load consumption: 4.2–10W (standard) / under 3W (ECO mode)
• Operating temperature: -40°C to +65°C (fan-assisted)
• Ingress protection: IP21
• Remote on/off; screw-terminal DC connection; pair with the Victron Filax 2 for automatic transfer switching
