Simrad SS75M 20 Degree Tilt
Model: 000-13910-001
Features:
- CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures.
- Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings.
- CHIRP range is 80kHz-130kHz for good target detail in shallow water and excellent bottom tracking in deep water.
- Provides extremely accurate data.
- The 20° tilt is ideal for boats with a 16° to 24° hull deadrise.
- The low profile housing minimizes drag with just 5mm extending outside of the hull.
- Easily connect to NSSevo3

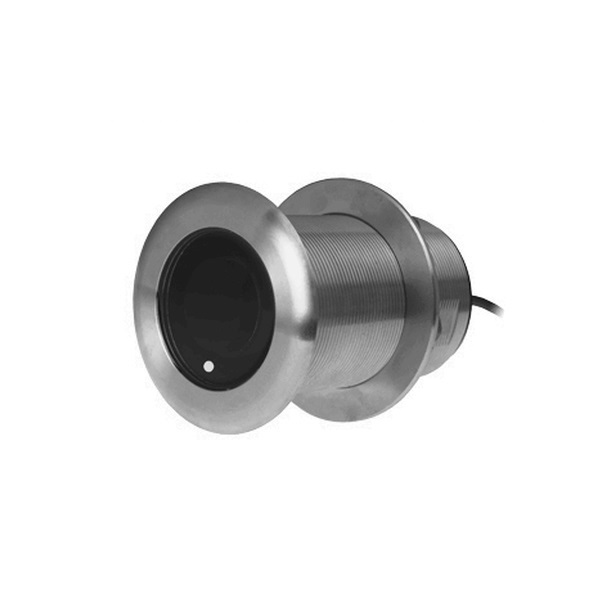

The SS75M is a bronze, thru-hull, tilted, medium-frequency (80-130kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.
Specifications
| Frequency | Medium CHIRP (80-130kHz) |
| Power rating | 600 watts |
| Speed sensor | No |
| Temperature sensor | Yes |
| Mounting style | Stainless Thru-hull |
| Elements | 1 |
| Beamwidth @ -3db | 24° to 16° |
| Cable length | 10 meter |
