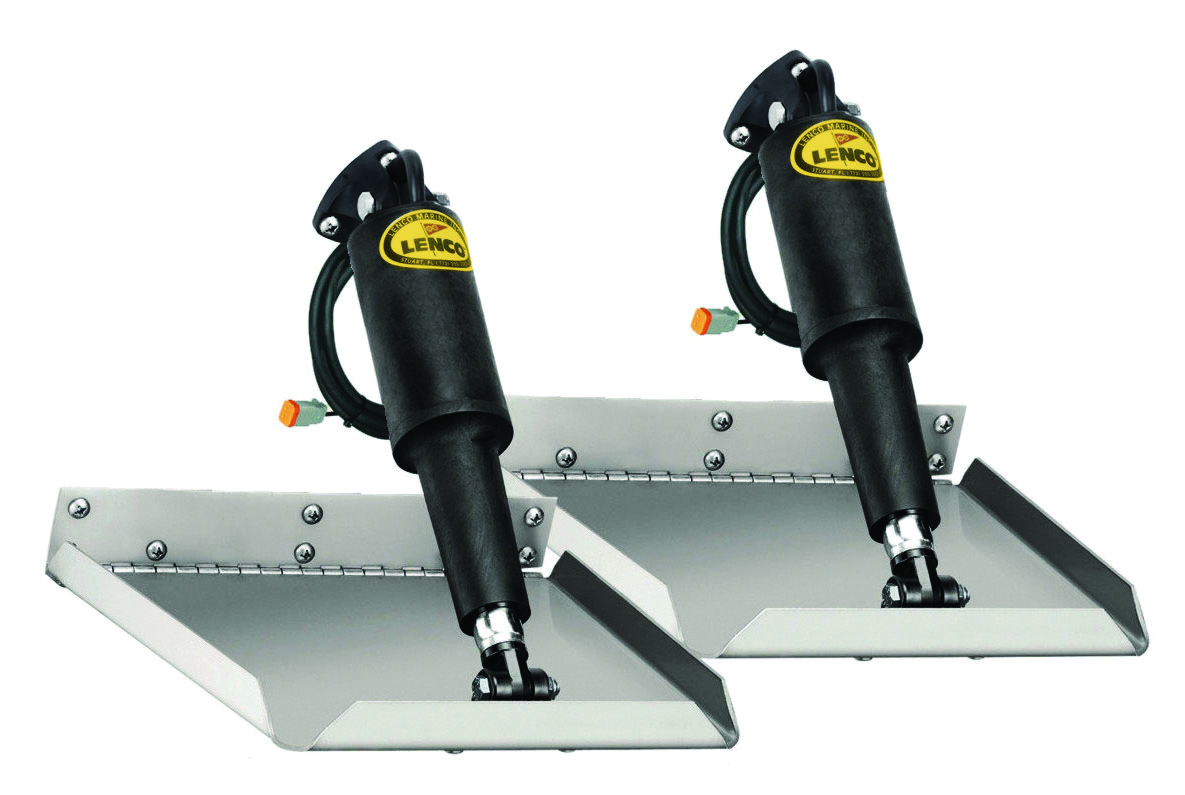

Lenco 9" X 9" Edge Mount Trim Tab Kit - Requires Switch
Model: 15013-101
Designed for boat applications where a lower actuator mounting height is desirable. The actuator mounts at the trailing edge of the blade giving it a 13.5"" (34.29 cm) mounting height on 9"" (22.9 cm) long blades & 11"" (27.94 cm) mounting height on 12"" (30.5 cm) long blades. All edges are turned up for added strength and style. Boat lengths are from 14' (4.3 m) to 36' (11 m). Blades are constructed of 12-gauge (2.7 mm) laser cut 304 stainless steel with 1"" (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge, & 1/8"" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with a mechanical cable gland seal.
Specifications
| Plane Size L x W | 9" X 9" |
| Boat length | 14' - 18' |
| Hinge Height | 2" |
| Min Transom Height | 13.5" |
| Voltage | 12vDC |
What's in the Box:
- (2) 12-gauge stainless steel standard finish blades
- (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors
- (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length
- (2) 15085-001 upper mounting brackets with gland seal
- (2) 50014-001 lower mounting brackets
- Lenco owner’s/installation manual
- Stainless steel mounting hardware
