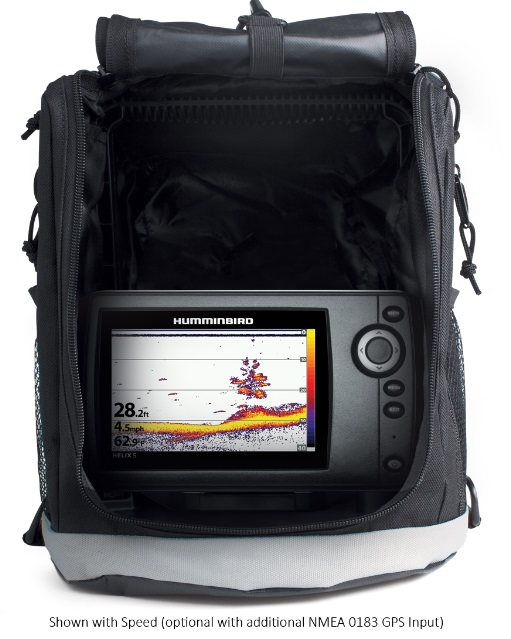

Humminbird Helix 5 Sonar G2 Portable
Model: 410250-1
UPC: 082324049002
Features:
- SwitchFire Sonar - Take command of how your sonar returns appear with our Clear and Max Modes.
- Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area.
- Up-gradable Software -- Access software updates to enhance the performance of your Humminbird unit through our My Humminbird section of the site.
The HELIX 5 Sonar G2 PT with our new user interface and operating system, features a brilliant 800H x 480V, 5" 256 color display with backlight. DualBeam PLUS sonar with 4000 watts PTP power output. Maximize your angling experience with the Humminbird HELIX 5 Sonar G2 PT fishfinder system
Specifications
| Display size | 5 in |
| Display resolution | 800 x 480 |
| Display type | Color TFG |
| Display colors grayscale | 16-bit |
| Standard sonar | DualBeam PLUS |
| Standard sonar coverage | 20° & 60° @ -10db |
| Standard sonar frequency | 200/83 kHz |
| Target separation | 2.5 in |
| Power output RMS | 500 watts |
| Power output Peak To Peak | 4000 watts |
| Depth capability | 1500 ft |
| Temperature | Built-in transducer |
| Speed | Optional |
| Backlight | LED |
| PC Connect | Optional |
| Split screen zoom | Yes |
| Split screen bottom lock | Yes |
| large digit view | Yes |
| Freeze frame | Yes |
| Input Voltage | 10.8-20 VDC Includes 12V 7 amp hours battery |
| Input Draw | 600 mA |
What's in the Box:
- Helix 5 Sonar
- Portable case
- 12V 7 amp hours battery
- XPT 9 20 T
