Fusion SG-F773W 7.7" Speakers Signature Series 3i 280 Watts Classic White - 010-02772-00

Price: $439.99
No reviews yet Write a Review
SKU:
FUS0100277200
UPC:
753759297930
Shipping:
Calculated at Checkout

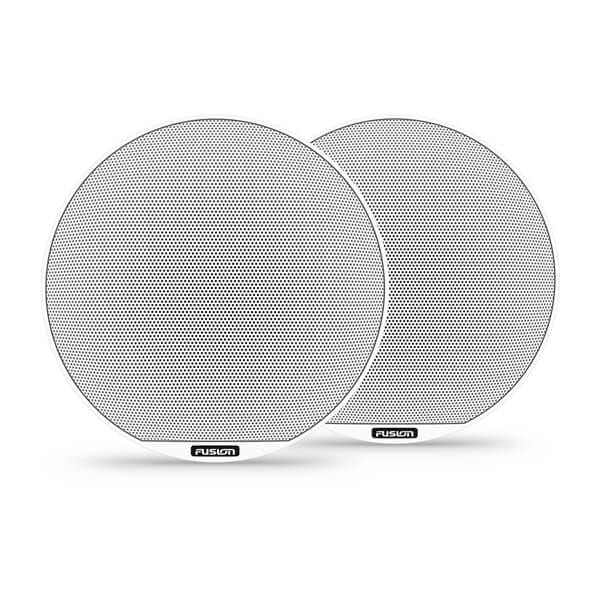

Fusion Signature Series 3i Marine 7.7" 280-watt Coaxial Classic White Marine Speakers (Pair)

Model: 010-02772-00
  • Crystal-clear premium sound quality is suited for the marine environment.
  • Water-resistant connectors provide simplified installation and superior protection.
  • The rigorously tested marinized design has an IP65 rating.
  • Built to last season after season, the Signature Series 3i coaxial speakers include a supported 3-year warranty.

Bring on the elements. The Signature Series 3i coaxial speakers deliver crystal-clear audio and withstand the conditions like never before.

New, water-resistant connectors now come standard. This makes installation easy and provides superior protection from the harsh marine environment.

Material enhancements and protective engineering maintain the sharp aesthetic appeal of your speakers, year after year.

Any product that bears the Fusion True-Marine seal of assurance has been designed by Fusion to withstand the harshest marine environments season after season and comes with an industry-leading 3-year warranty.

A lighter and stronger woven fiber composite produces greater sound definition at a higher volume.

These speakers are designed to work optimally with Fusion® stereo systems and amplifiers (sold separately) with custom DSP profiles. This requires the Fusion-Link™ smart-device app for setup.

Specifications
General
Physical dimensions (Diameter x Depth)8.66" x 4.31" (220 x 109.5 mm)
Weight4 lbs (1.80 kg)
Water and dust ratingIP65
ConfigurationCoaxial
Peak power (watts)280 watts
RMS power rating (watts)100 watts
Sensitivity (1 watt @ 1 meter)91 dB
Frequency response60 Hz—22 kHz
Nominal impedance4 ohm
Recommended amplifier power (watts RMS)25—120 watts/channel
LED lightingNA
LED supply voltageNA
LED load current @14.4 VDC (max)NA
Operating temperature range32—122 degrees F (0—50 degrees C)
Voice coil diameter1.4"
Cone materialCURV® Cone Technology with rubber surround
Tweeter typeSilk dome
Compass-safe distance141" (358 cm)
Speaker connectionFlying lead with water-resistant 2-way connector, 5.9" (150 mm)
LED connection (sports style with LED models only)NA
Warranty3 years
Mounting Dimensions
Mounting diameter clearance6.14" (156 mm)
Mounting depth clearance3.39" (86 mm)
Optimum Enclosure Recommendations
Sealed enclosure volume (fully filled with absorption material)0.71 cubic ft (18 L)
Ported (vented) enclosure volume (lined with absorption material)0.1.06 cubic ft (25 L)
Port diameter3" (76 mm)
Port length6.4" (162 mm)

What's in the Box:
  • 7.7" 280-watt Coaxial Classic White Marine Speakers (Pair)
  • 12 Phillips stainless steel mounting screws, 4.2 mm x 40 mm (8 gauge x 1.6")
  • 2 water-resistant cable assemblies with 2-pin connector (5.9" (150mm))
  • Documentation
