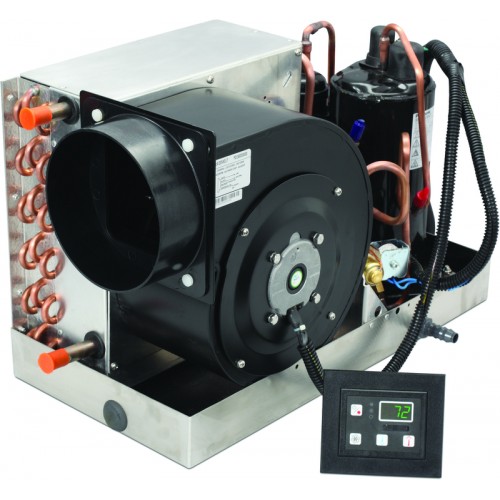

Dometic ECD 16 Self-Contained Marine Air Conditioner - 16,000 BTU 115v 60 Hz - 207500316 / 9108732755
Enjoy ideal temperatures on your boat year-round with EnviroComfort (ECD series) self-contained air conditioning kits. Offering cooling or heating in 6,000, 10,000 and 16,000 BTU/hr capacities, ECD Kits contain all the components needed for a quality A/C system.
Features:
- ROTATABLE BLOWER
- ECO-FRIENDLY R-410A REFRIGERANT
- DIGITAL CONTROL EASY TO USE
- CAPACITY (BTU/H) 16,000
- VOLTAGE: 115
- FREQUENCY: 50/60
All ECD models include a Passport I/O display and a 10' display cable.
ITEM DESCRIPTION
ECD16K/2-HV 410A KIT, 115V 50/60Hz - 207500316
| Model | ECD6K-410A | ECD10K410A | ECD16K410A |
| Capacity (BTU/h) | 6000 | 10000 | 16000 |
| Voltage (V) | 115/230 | 115/230 | 115/230 |
| Cycle (Hz)/Phase (Ph) | 60-50/1 | 60-50/1 | 60-50/1 |
| Full Load Amps (FLA) Cool (A) | 4.6/2.3 | 7/3.5 | 10.5/5.1 |
| Locked Rotor Amps (LRA) (A) | 36/18 | 42/21 | 62/34 |
| Max. Circuit Breaker (A) | 15/10 | 25/15 | 40/20 |
| Min. Circuit Ampacity (A) | 12/8 | 16/10 | 25/12 |
| Refrigerant Type | 410A | 410A | 410A |
| Height (in/mm) | 11.25/286 | 13.25/337 | 13.5/343 |
| Width (in/mm) | 16/407 | 20/508 | 20/508 |
| Depth (in/mm) | 9/229 | 9.63/245 | 11.25/286 |
| Min. Supply Duct Size (in/mm) | 4/102 | 6/153 | 6/153 |
| Seawater Inlet Connection (in/mm) | 5/8 /16 | 5/8 /16 | 5/8 /16 |
| Net Weight (lbs/kg) | 38/17.3 | 57/25.9 | 67/30.4 |
| Height-Electrical Box (in/mm) | 8.75/223 | 8.75/223 | 8.75/223 |
| Width-Electrical Box (in/mm) | 6.5/166 | 6.5/166 | 6.5/166 |
| Depth-Electrical Box | 2.77/71 | 2.77/71 | 2.77/71 |
1-year warranty, parts and labor.
Not to exceed three (3) years from date of manufacture.
