Dometic PUMP P030M-2371-250-1/4T (230V Only) - Replaces P1500BXT - 225480063 / 9610001803
Magdry sealless pump series is a rugged design with no mechanical seals. The composite heads and impellers will not
be affected by the corrosive seawater. The carbon bushings will give the pump added protection in run dry situations.
Rugged construction and a strong neodymium magnetic make this pump robust and very low maintenance.
Technichal Data
Specifications
| Part Number | 225480063 / 9610001803 |
| Model | P030M 230V |
| Replaces | P1500BXT |
| HP 50 Hz | 0.25 |
| HP 60 Hz | 0.25 |
| Phase | 1 |
| Voltage 50 Hz | 220 |
| Voltage 60 Hz | 230 |
| Amps 50 Hz | 1.9 |
| Amps 60Hz | 1.5 |
| Dimensions (IN) | 12.8L x 5.4W x 6.8H |
| Impeller Size (IN) | 2.5 |
| Inlet Port (IN) | 1 |
| Outlet Port (IN) | 3.4 |

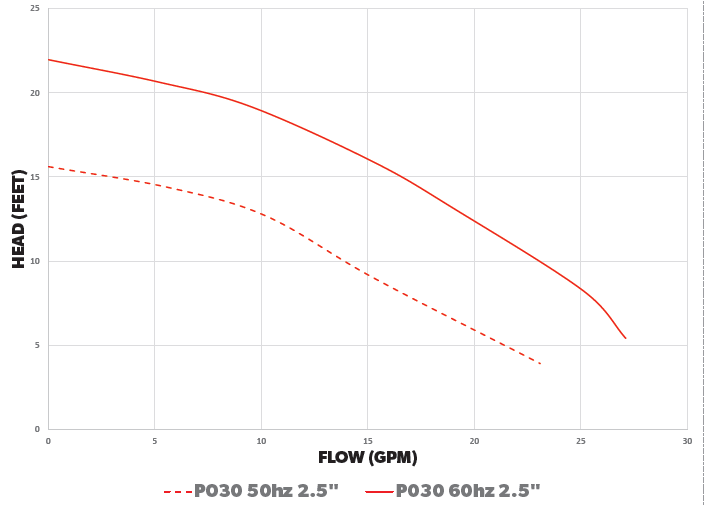

Drawings
