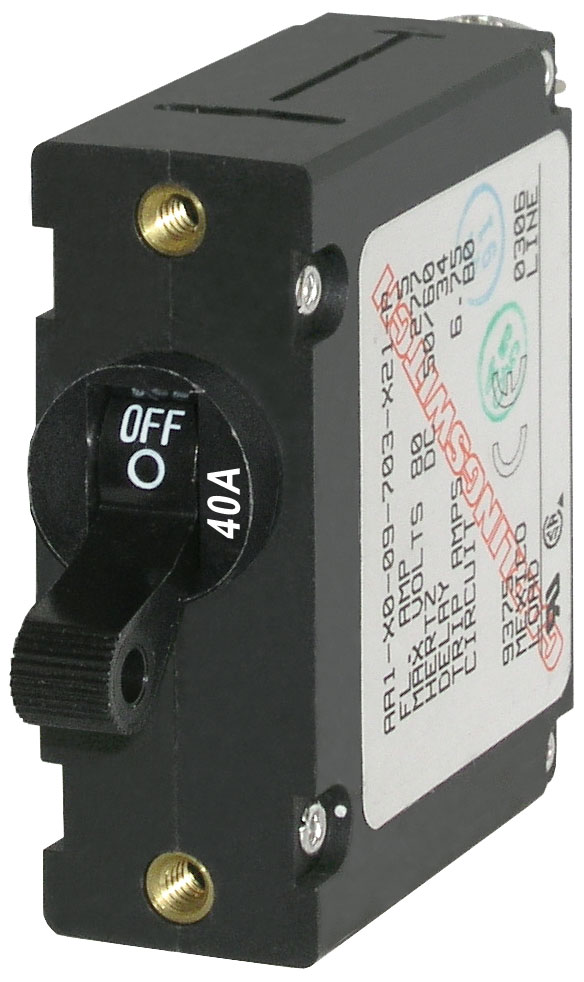

Blue Sea Systems A-Series Black Toggle Circuit Breaker - Single Pole 40A
Model: 7224-BSS
Features:
- Meets American Boat and Yacht Council (ABYC) standards
- The industry standard circuit breaker for Blue Sea Systems' electrical panels
- Combines switching and circuit protection into a single device
- "Trip Free" design cannot be held "ON" during fault current condition
Specifications
|
Amperage |
40A AC |
|
Color |
Black |
|
Actuator Style |
Toggle |
|
Poles |
1 |
|
Maximum Voltage |
240V AC |
|
Circuit Breaker Type |
Magnetic Hydraulic - trip free |
|
Interrupt Capacity |
3000A @ 120V AC |
|
Minimum Operating Temperature |
-40° C |
|
Maximum Operating Temperature |
85° C |
|
Mounting Screw |
#6-32 Stainless Steel |
|
Mounting Screw Torque |
6 in-lb (0.68 Nm) |
|
Screw Terminal Torque |
14 in-lb (1.58 Nm) |
|
Switching Cycles |
10000 |
|
Terminal Screws |
#10-32 Stainless Steel |
