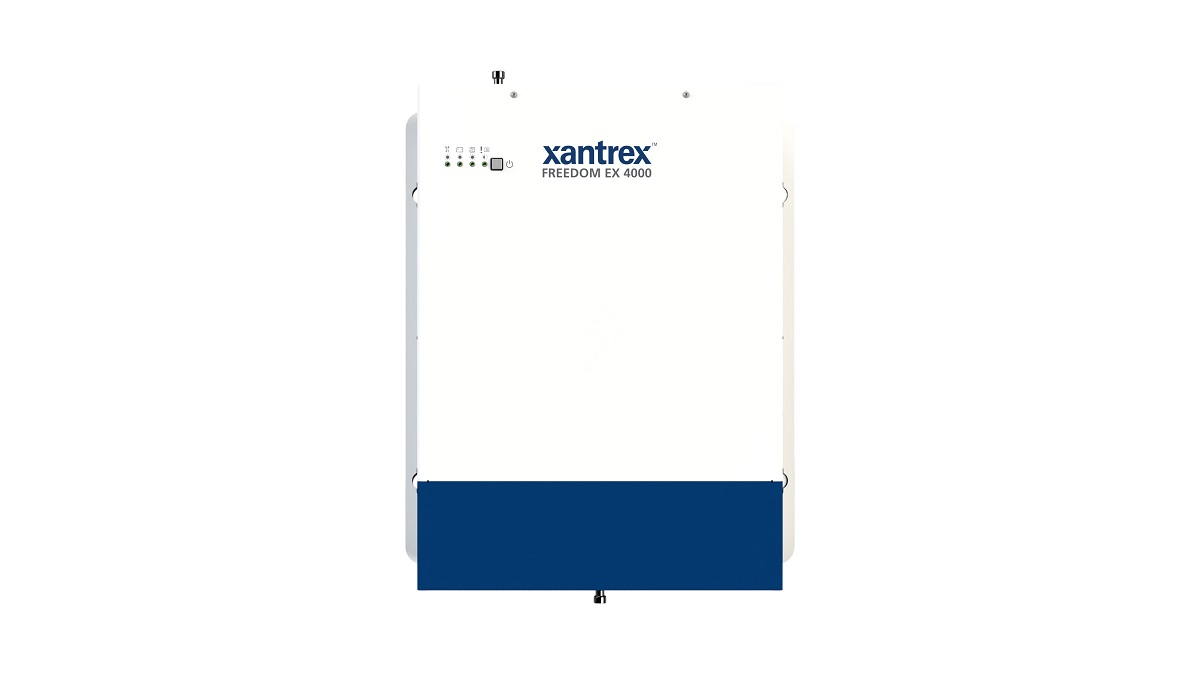

Xantrex Freedom EX 4000 Inverter/Charger with 48VDC-to-12VDC Converter
Model: 820-4080-41
Features:
- Stack up to 3 units in parallel; up to 2 units in series
- 48VDC to 12VDC converter output
- Highly configurable charger specifically designed for lithium ion batteries
- Built-in 50A Transfer Relay
- Extended Surge Rating to 2X continuous power for 5 seconds
- True Sine Wave AC Power
- Ignition Control Feature to turn inverter on/off via a 12VDC signal
The new FREEDOM EX 4000 is a truly unique, true sine wave power solution packing a powerful 48VDC, 4000W (8000W [5s]) inverter, 80A 48VDC battery charger, 50A transfer relay and a 48VDC to 12VDC, 45A converter inside one box. Designed for mobile applications that utilize 48VDC battery systems, the FREEDOM EX 4000 is designed to work as a standalone AC and DC power solution or supplement an existing generator to create a hybrid system. The FREEDOM EX 4000 features the most widely used communication protocols — RV-C (RV), enabling it to be used in virtually any application that requires integration with 3rd party MFPs and software.
Specifications
| ELECTRICAL SPECS - INVERTER | |
| AC Output Operating Voltage Options | 105 - 130VAC |
| Continuous Output Power | Continuous Power 4000 W @40 C True sine wave (TSW) at 120Vac |
| Continuous AC Output Current | 33A |
| Surge Power | 8000W(5 sec) |
| Frequency | 60Hz |
| ELECTRICAL SPECS - BATTERY CHARGER | |
| Nominal DC Output Voltage | 48VDC |
| Charger Voltage Range | 40 - 64VDC |
| Maximum DC Output Current (user configurable down to 5 A) | 80A |
| Supported Battery Types | Flooded, Gel, AGM, Lithium Ion, Custom |
| ELECTRICAL SPECS - PASS-THROUGH | |
| AC Input Voltage: | |
| Single-phase (L1 - N and L2 - N) | 80 - 138Vac |
| Split-phase* (L1 - L2) | 160 - 276Vac |
| Frequency (input/output) | 60Hz |
| Continuous AC current (input/output) | 40A |
| ELECTRICAL SPECS - 12 VDC POWER SUPPLY | |
| Nominal DC Output Voltage (fully regulated) | 13.5VDC |
| Maximum DC Output Current | 45ADC continuous (at 77 F (25 C) ambient) |
| Typical Application* Powering | 12 VDC Loads |
| ELECTRICAL SPECS - COMMUNICATIONS SUPPORTED | |
| Recreational Vehicles (RV) | RV-C Protocol |
| Trucking Vehicles (future offering) | J-1939 Protocol |
| Marine Vessels (future offering) | NMEA-2000 Protocol |
| GENERAL SPECS | |
| Operating Temperature Range | 14 to 140 F (-10 to 60 C), with output derated above 104 F (40°C) |
| Storage Temperature Range | -40 to 158 F (-40 to 70 C) |
| Operating Humidity Range | 5 to 95% RH, non-condensing |
| Transfer Relay AC Current Rating | 50A (40A continuous) |
| L x W x H | 17.1in (434mm) x 14in (354mm) x 8.1in (205mm) |
| Net Weight | 79.4lbs (36.0kg) |
What's in the Box:
- Freedom EX 4000
- Installation guide
- pair of ½" bushings
- pair of ¾" bushings
- one network terminator
