Vitrifrigo Evaporator, Box type, Pressed white aluminum, Quick couplings, Pre-charged, 16-1/2" W x 9-7/8" D x 4-1/2" H, 6 ft. line set
Cooling systems with boxed evaporators are recommended for all installations where a freezer compartment is required, leaving the remainder of the box as refrigerator space. Boxed evaporators with bottom piece and lids can be placed horizontally or vertically according to requirements and available space.
Specifications
| Overall width (In.) | 16 9/16 |
| Overall height (In.) | 4 5/16 |
| Overall depth (In.) | 9 13/16 |
| No quick couplings version code | S7 |
| Quick couplings version code | S7-Q |
Features
Lineset
available models:
LINESET-1M-PT-Q (3.3 Cu.Ft)
LINESET-3M-PT-Q (9.8 Cu.Ft)
LINESET-4M-PT-Q (13.1 Cu.Ft)
optional for PT, S series and keel coolers
LINESET-1M-PT-Q (3.3 Cu.Ft)
LINESET-3M-PT-Q (9.8 Cu.Ft)
LINESET-4M-PT-Q (13.1 Cu.Ft)
optional for PT, S series and keel coolers

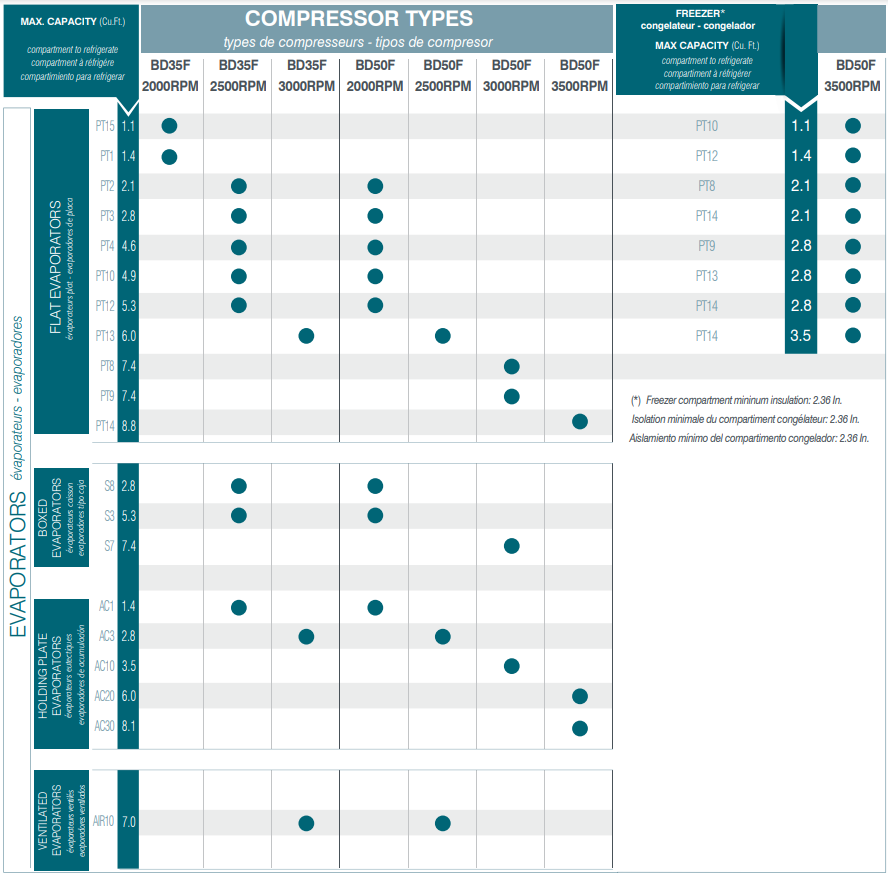

Cooling system combination chart
New units are warranted for a period of two (2) years from the date of installation or sale, for all parts, except the compressor. The compressor, only, is warranted for a period of three (3) years from the date of installation or sale.
