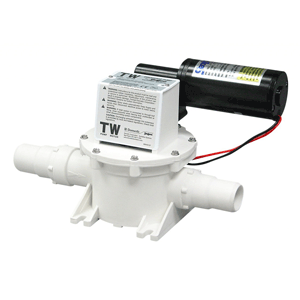

T Series Discharge Pump 12V
Model: 317301200
Description:
An industry standard, the T-series discharge pump has been redesigned to reduce audible noise. The changes, including improved pump stroke balance, optimized bellows design to enhance flow, and a new, efficient W-series motor with a revised gear drive, all combine to significantly reduce pump noise.
Features:
- Unlike impeller-type macerator pumps, this non-macerating bellows pump can run dry without damage
- Draws only 6 amps at 12 volts DC
- Self-priming up to ten feet (3.3 meters)
- Handles up to 4.5 gallons (17 liters) per minute
- No odors from pump
Dometic/Sealand’s “TW” series pumps offer a unique bellows pump that can run dry without damage and pass solids up to ½” without clogging, making it more versatile than impeller-type pumps. This unit is self-priming up to 10 feet and can process 300 gallons per hour. The “T” Series Discharge Pump 12V is energy efficient, drawing just 6 amps at 12 volts. “T” and “TW” discharge pumps are used to empty holding tanks or other tanks such as grey water or fish boxes. These pumps are NOT to be used as substitutes for vacuum pumps.
Specs
T Series Waste Discharge Pump
| Amperage | 3 Amps at 24 Volts or 6 Ams at 12V |
| Capacity | 5 Gallons per Minute |
| Diameter | 1 1/2" Barb |
| Dimensions | 6 3/4" Width x 7 3/4" Height x 13 3/4" Length |
| Material | Polypropylene |
| Voltage | 24 Volts DC |
| Warranty Details | One Year Limited |
