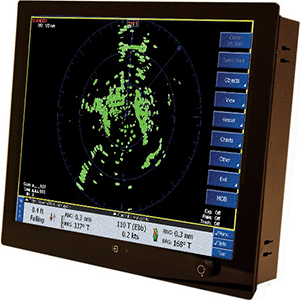

12" Pilothouse Touch Screen Display - PHT-12
Seatronx glass bridge displays are the perfect fit for those looking for rugged design combined with attractive styling.
The pilothouse displays feature up to 300 nits of low-power LED backlighting, which makes them a perfect fit for pilothouses where brightness is not a problem. They can also be completely dimmed for nighttime use using the front panel control.
Features:
- Mounting - Panel Mount , Vesa Mount
- Dimensions - 11.88" x 10.13" x 2.28"
- Cutout Dimensions - 11.16" x 9.43" x 2.40"
- Projected Capacitive Touch
- Optical Bonding
- Optional Remote Control
Technical Specifications:
- Diagonal (active area) Inch - 12.1"
- Native Resolution (Pixels) - 1024x768
- Contrast Ratio - 700:1
- Brightness - 700
- Viewing Angle (left, right) - 80, 80
- Viewing Angle (up, down) - 80, 80
- Backlight Dimming - 0 - max
- Backlight Lifetime (Hrs) - 50,000
- Input terminal x1 HDCP HDMI - HDMI, DVI, VGA, Comp
- Power Source - 9-34V + and -
- Power Consumption (AMPS @ 24VDC) - 2.5
- Inlet Plug DC Power - Screw Terminal
- Sealing Front - IP68 with Potentiometer
- Operating Temperature (°C) - -30 to 85
- Storage Temperature (°C) - -30 to 80
