Scot Pump 3000GPH 115/230V 50/60hz
Specify Scot Model: 35065-2 to replace an Oberdorfer Model 109M
Pump:
• All Bronze marine centrifugal pump
Freshwater or seawater applications
• Precision machined to close tolerances
for consistent performance.
• Hardware - Type 303 stainless steel
• Semi-open impeller handles solids
• Impeller mounted on motor shaft
• Heavy-duty, designed for continuous
24 hour – 7 day operation.
• Stainless steel shaft.
Shaft Seal:
• Rated at 75 PSI – 5 BAR
• Seawater Buna rubber parts, ceramic
stationary and carbon rotating element,
stainless steel spring and metal components.
Motor – 2 Pole:
• Totally enclosed fan cooled IP-44 motors
meet marine, European, and Coast Guard
ignition protected requirements.
• Sealed ball bearings
• Single-phase capacitor start
50 Hz - 110/220 Volt 60 Hz – 115/230 Volt
• Dual frequency 50 Hz or 60 Hz motors are available
• Three phase motors are not available.

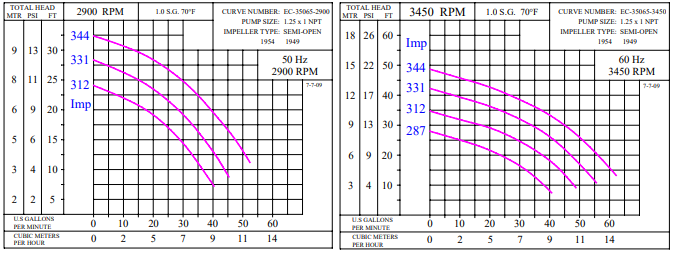

Performance:
Dimensions:

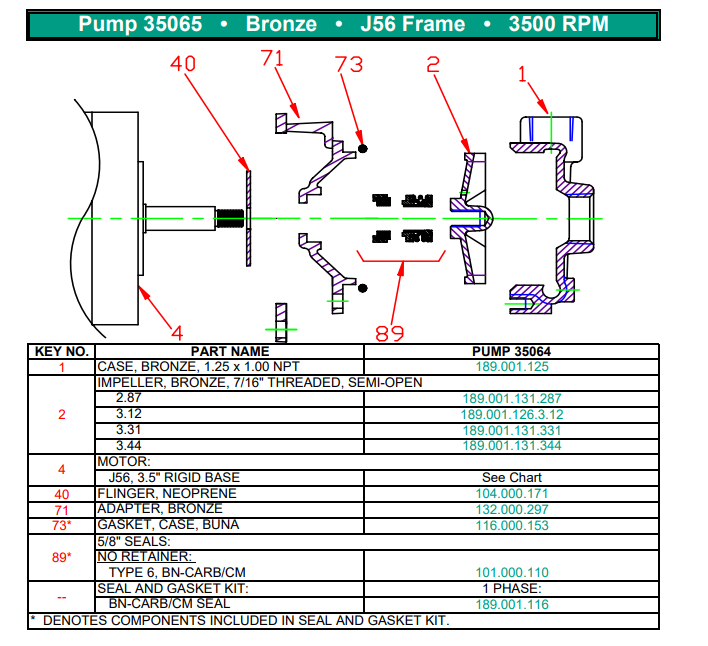

Spare Parts
- Voltage:
- Dual Voltage 115V/230V
- Capacity:
- Up to 144,000 BTU
