Raymarine RAY90 Modular VHF Radio
Model: E70492- Black box, multi-station capable VHF radio
- NEW - Optional Wireless handset and active speaker available
- Wired handset and passive speaker included
- Expandable to 2 handsets
- Built-in loudhailer and fog signal generator
- Optional external GPS
- Simple NMEA2000 and NMEA0183 Networking

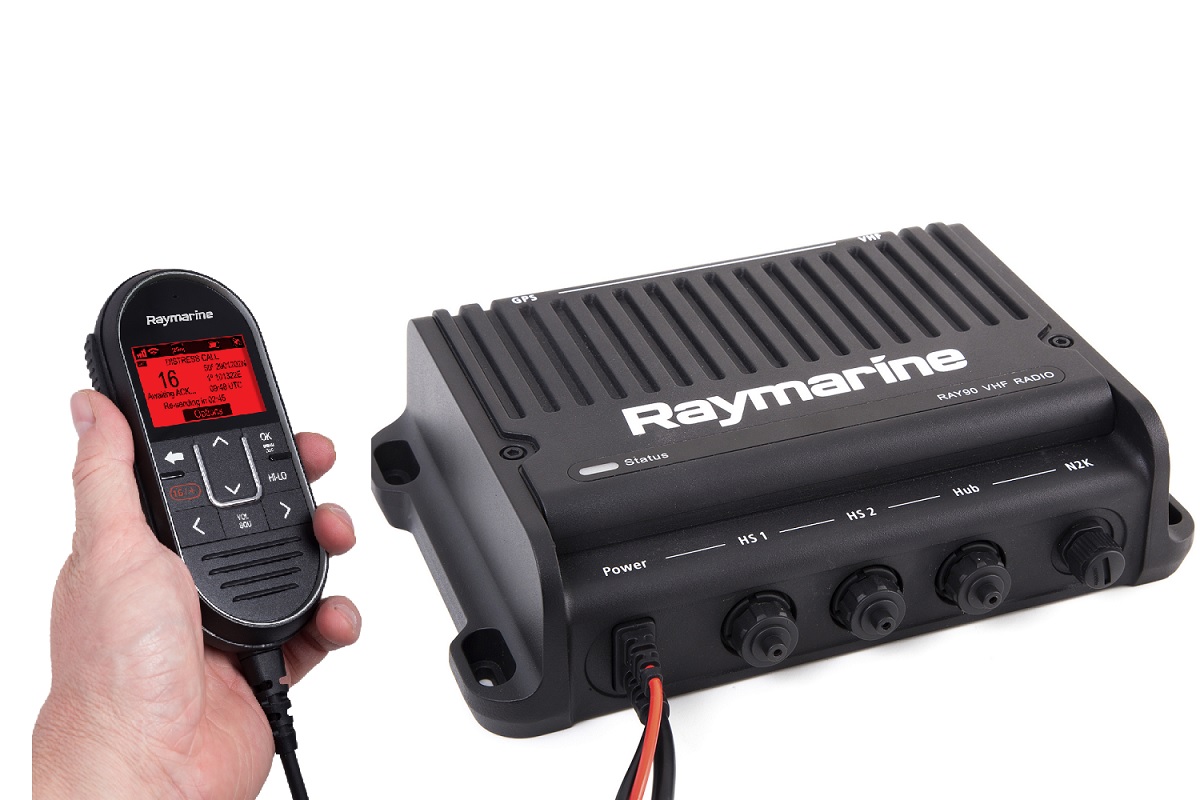

Raymarine’s fixed mount Ray90 modular VHF radio brings multi-station communications to a whole new level of power, performance, and flexibility. The Ray90 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.
Ray90 is equipped with a powerful 25-watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessel’s MMSI number during setup and you’re ready to go. For GPS operation the optional GA150 passive GPS antenna is required.
Use Ray90’s position tracking feature to keep tabs on up to 5 nearby DSC equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe the Ray90 supports the ATIS system on navigable inland waterways.
Ray90’s built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can also be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.
Ray90’s transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions.
The Ray90 system includes 1 RayMic wired handset and a passive speaker kit. Expand your system with an additional RayMic handset and remote speaker. For noisy environments choose the optional active remote speaker. No matter how small or how large your vessel is, the Ray90 all the power and performance you need for essential communications on the water.
Specifications| ENVIRONMENTAL | |
| Water Integrity | Complies with IPX6 & IPX7 Complies with EN60945 |
| Operating Temperature Range | -25°C to 55°C |
| Storage Temperature Range | -25°C to 70°C |
| Humidity | up to 95% |
| Electrical | |
| Communications Port | NMEA 0183 (version 4.01); NMEA2000 (version 3.101) |
| Nominal Supply Voltage | 12V DC. Reverse polarity and over voltage protected |
| Operating Voltage Range | 9V DC to 16V DC |
| Current Consumption | Less than 6A at High Power (13.6V) Standby: 600 mA Receive: 2 Amps |
| Transmitter | |
| Channels | All available US, International and Canadian VHF marine bands |
| Frequency Range | 156.000 — 157.425 MHz 155.500 to 161.425 MHz Private channels |
| Frequency Stability | + / - 1.5 ppm |
| Channel Spacing | 12.5 kHz |
| Power Output | High Power = 25 Watt, Low Power = 1 Watt |
| Spurious emmission | Better than -36 dBm at 25W (Less than 0.25 µW) |
| Maximum Deviation | +/- 5kHz |
| Antenna port impedance | 50 ohms typical |
| Receiver | |
| Receiver Type | Double Conversion Super Heterodyne |
| Channels | All available US, International and Canadian VHF marine bands |
| Frequency Range | 156.000 — 157.425 MHz 155.500 to 161.425 MHz Private channels |
| Sensitivity: | Better than 1 microvolt EMF @ 20dB SINAD |
| Hum & Noise | Better than -40 dB |
| Audio Distortion | Less than 10% |
| Receiver Sensitivity | Distance -119 dBm (0.25uV)@12 dB SINAD ? Typical Local -110 dBm (0.7uV)@12 dB SINAD ? Typical |
| Adjacent Channel Selectivity | More than 70 dB |
| Spurious Response Rejection | More than 70 dB |
| Inter Modulation Rejection | More than 70 dB |
| GPS | |
| Number of channels | 72 |
| Cold Start | 29s |
| Receiver IC Sensitivity | -167 dBm (Tracking) / -148 dBM (Acquisition) |
| GNSS Compatibility | GPS GLONASS *BeiDou |
| SBAS Compatibility | WAAS EGNOS MSAS |
| Special Features | Active jamming and interference reduction |
| Operating frequencies | GPS L1 C/A GLONASS L10F Beidou B1 |
| Signal Acquisition | Automatic |
| Almanac Update | Automatic |
| Geodetic Datum | WGS-84 (alternatives available through Raymarine MFD) |
| Refresh Rate | 20 Hz (20 times per second concurrent GNSS) |
| Positional Accuracy | Without SBAS: <2.5 metres 95% of the time With SBAS: <2 metres 95% of the time |
| Dimensions | 2.48"" H x 9.25"" W x 6.3"" W |
What's in the Box:
- Ray90 / Ray91 VHF DSC Radio (including fitted power and data cable)
- Raymic handset cradle
- Raymic handset
- Raymic handset adaptor cable (12 pin female to 12 pin male with RCA Audio)
- Passive speaker
- Passive speaker mounting gasket
- Passive speaker mounting screws x 4
- Documentation
- VHF radio mounting screws x 4
- Handset cradle mounting screws x 4
- DeviceNet to SeaTalkng® adaptor
