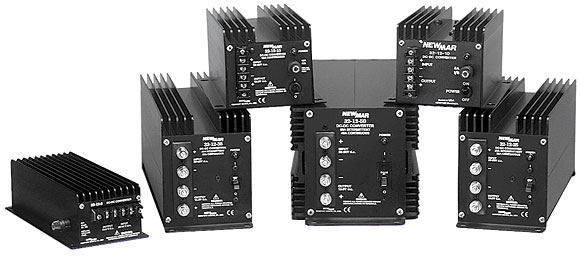

Newmar 32-12-25 DC-DC Converter 20-50vdc To 13.6 Vdc @ 25a
Model: 32-12-25
Features:
- Excellent Regulation: Output voltage maintained within 1% under all line and load conditions within rating.
- Heat generated by semi-conductors is extracted and dissipated by large heat sink fins that maximize air contact for cool operation and long life of components.
- Polyurethane conformal coating on PC boards and corrosion-resistant anodized aluminum case with heavy duty shock mounts assure survival in hostile environments.
- Numerous converter and load protection circuits:
- Current limiting
- Automatic thermal shutdown
- Short circuit proof
- Reverse polarity
- Overvoltage protection
- Carries CE mark
Convert 20-50 VDC input to 12 negative ground output for powering communication/navigation equipment, on negative ground systems. (See Isolated Series, for positive ground applications.) Ideal for powering voice, data and navigation electronics in marine applications.
Specifications
| Input voltage | 20-50 |
| Output voltage | 13.6 |
| Output Amps Intermittent | 25 |
| Output Amps Continuous | 20 |
| Dimensions H x W x D | 6" x 4.7" x 14" |
