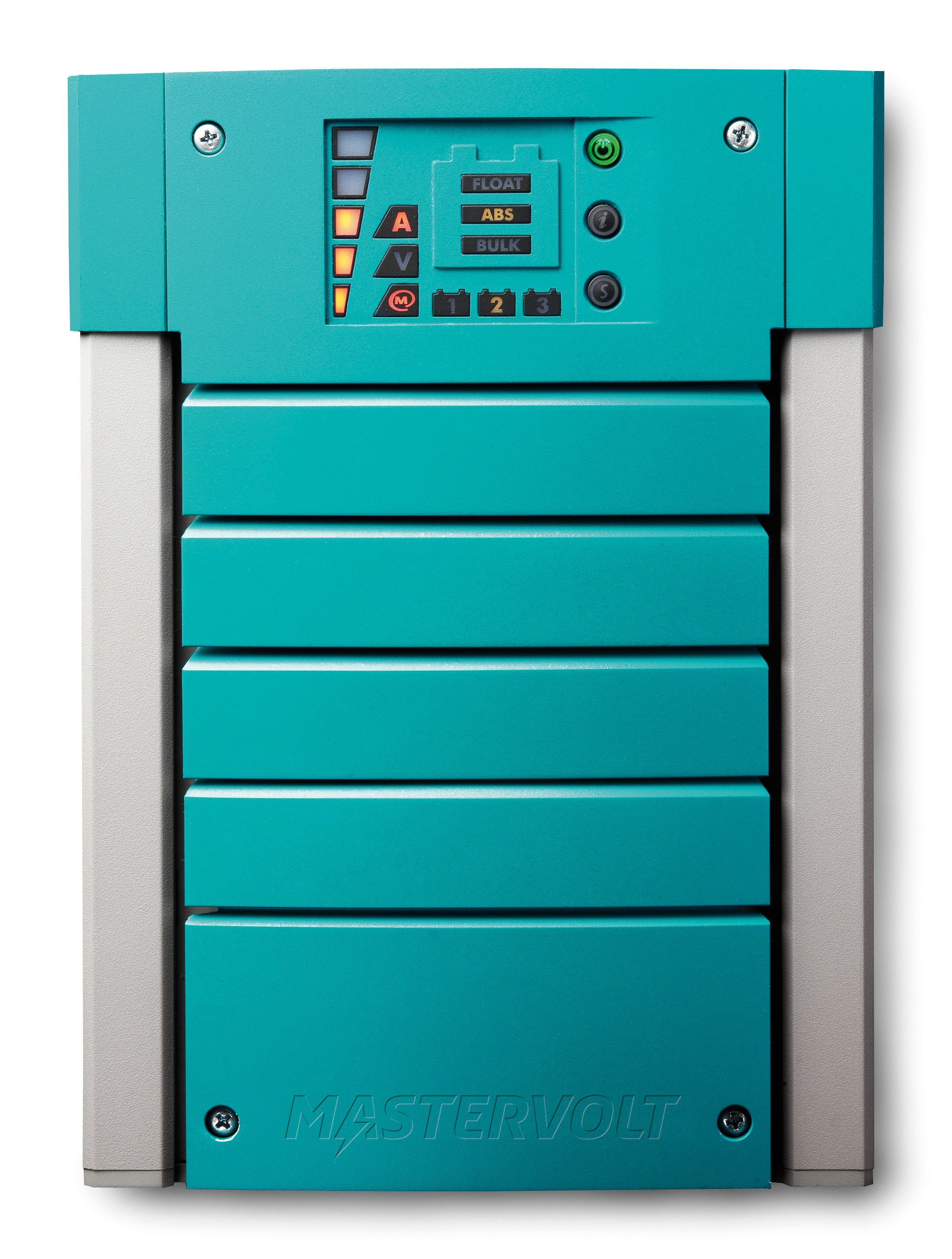

Mastervolt ChargeMaster - 24Volts 30 Amps, 3 Outlets 44020300
Thanks to Mastervolt’s innovative 3-step+ charging process, batteries perform better and last longer. ChargeMaster guarantees fast and complete charging of your batteries no matter where you are.
General Specifications
| Nominal output voltage | 24 V |
| Total charge current | 30 A at 28.8 V |
| Number of battery outlets | 3 |
| Charge current second output | 30 A |
| Charge current third output | 30 A |
| Battery bank size | 60-300 Ah |
| Nominal input voltage | 120/230 V (90-265 V), 50/60 Hz |
| AC connection | connector strips |
| Power supply mode | yes |
| Galvanic isolation | yes |
| Display/read-out | LED display |
| Fastening | mounting bracket (included) or 4x screw |
| Dimensions, hxwxd | 291 x 210 x 131 mm 11.5 x 8.3 x 5.2 inch |
| Weight | 4 kg 8.8 lb |
| Compliance | CE, ABYC A-31, SAE J1171/ISO 8846 ignition protected, RMRS, RRR |
| Optional |
Quick Connect (OEM) version with WAGO 770-113 connector and 25 cm cable, product code 44020302 |
Technical Specifications
| Charge characteristic | IUoUo, automatic 3-step+ for gel/AGM/wet/Lithium Ion |
| Charge voltage Bulk | 28.8 V |
| Charge voltage Absorption | 28.5 V |
| Absorption time | 4 hours |
| Charge voltage Float (wet batteries) | 26.5 V |
| Charge voltage Float (Gel/AGM batteries) | 27.6 V |
| Temperature compensation | yes |
| DC voltage compensation | automatic |
| Power consumption (DC side) | < 2.5 mA |
| Full load consumption (230 V AC) | 925 W |
| Current Control function | yes, through MasterBus |
| Power factor control | ≥ 0.98 |
| Temperature range (ambient temp.) | -25 °C to 60 °C, derating < 0 °C and > 40 °C -13 °F to 140 °F |
| Cooling | vario fan |
| Protection degree | IP23 |
| Protections | over temperature, over load, short circuit, high/low battery voltage |
| MasterBus compatible | yes |
