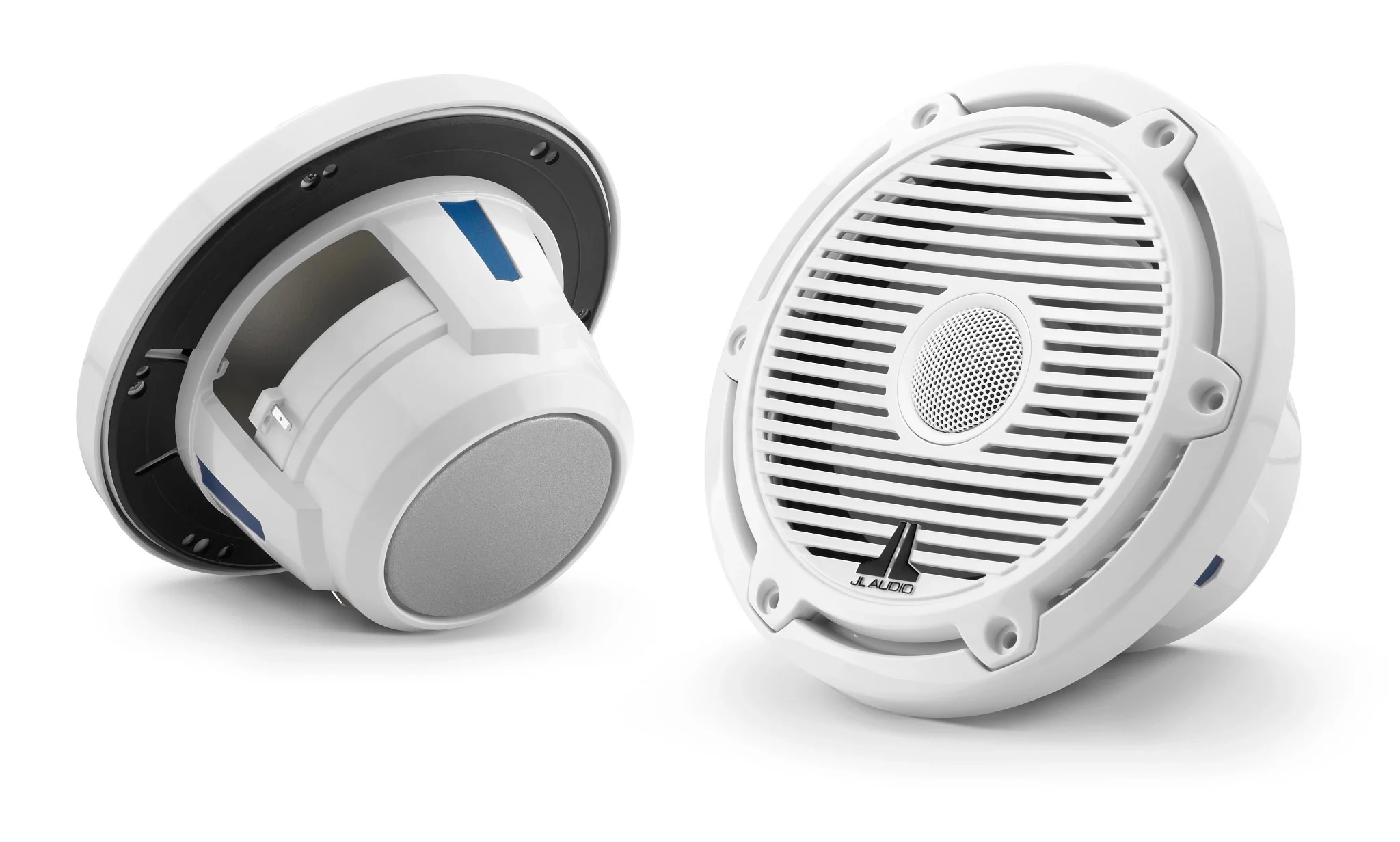

JL Audio M6 6.5in Coaxial Speakers White Sport Grille
Model: M6-650X-S-GWGW
Part Number: 010-03090-00
M6 6.5-inch Marine Coaxial Speakers (75 W, 4 ohms) - Gloss White Trim Ring, Gloss White Classic Grille, White Tweeter Mesh
A DMA-optimized, long excursion woofer design and excellent power handling ensures your music will come through loud and clear at speed, or at anchor.
A 0.8-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. You will appreciate the clean, articulate high-frequency response of the M6 dome tweeter, especially at higher volume levels.
A multi-order, true 2-way passive crossover is concealed within the woofer chassis, shielded from vibration and corrosion. Also included, is an automatic, solid-state tweeter protection circuit to minimize the possibility of tweeter failure.
Although M6-650-X Coaxial Systems can be used with as little as 25 W per channel, for best audio performance we recommend amplifiers capable of between 75-150 W of continuous power per channel.
Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.
Sold as a pair.
USA Limited Warranty: Two (2) years from the original date of purchase.
Specifications
| General Specifications | |
| Continuous Power Handling (RMS) | 75 W |
| Recommended Amplifier Power (RMS) | 25 - 150 W / Ch. |
| System Efficiency | 89.5 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 ohms |
| System Frequency Response | 55 Hz - 25 KHz ± 3 dB |
| Coaxial Physical Specifications | |
| Frame Outer Diameter | 6.90 in / 175 mm |
| Bolt Hole Circle Diameter | 6.13 in / 156 mm |
| Frontal Grille Protrusion | 0.94 in / 24 mm |
| Mounting Hole Diameter | 5.00 - 5.25 in / 127 - 133 mm |
| Mounting Depth | 3.00 in. / 76 mm |
