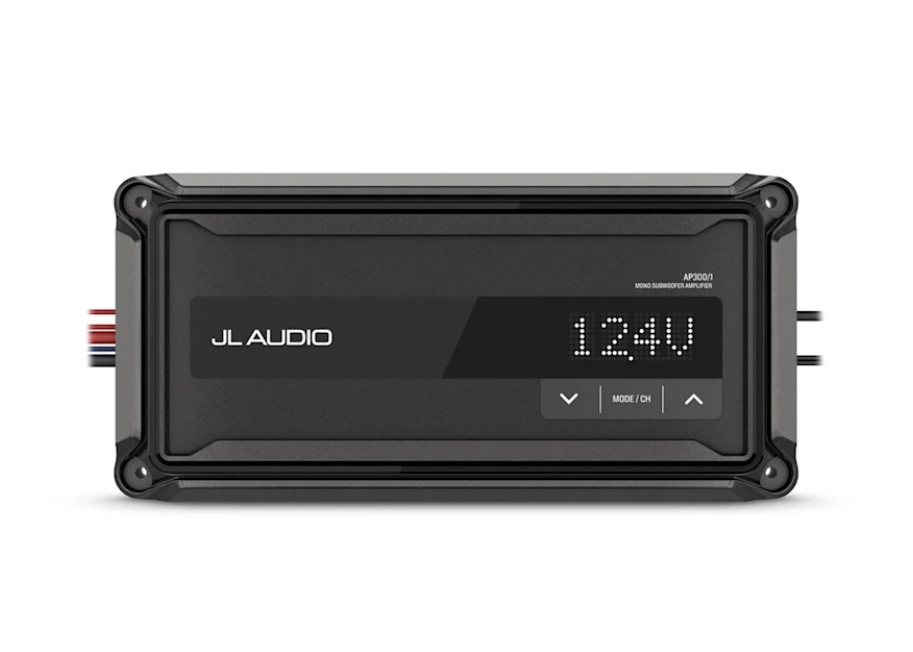

JL Audio AP300/1 Amplifier 300 Watt Monoblock
Model: 010-03428-00Features:
- 300-WATT MONOBLOCK AMPLIFIER: This monoblock amplifier is specifically designed to power a subwoofer.
- EASY TUNE FEATURE: For additional optimization, pair with a Fusion® stereo with built-in DSP, and download the Fusion® Audio app for selectable profiles. This enables the Easy Tune feature, which streamlines amplifier setup to ensure superior sound quality and system protection.
- CLASS-D AMPLIFIER TECHNOLOGY: The highly efficient Class-D design provides lower battery drain with a higher output than Class-AB amplifiers. This delivers increased power to the connected speakers/subwoofers for an enhanced level of audio performance.
- RUGGED DESIGN: These amplifiers offer superior levels of durability and are built to IP67 standards (excluding cables) to withstand abuse in harsh marine environments.
With these tough and ultracompact amplifiers, you can enjoy every note from every part of your boat.
Specifications| General | |
| Channels | Monoblock |
| Physical dimensions (Height) | 1.86" (47 mm) |
| Physical dimensions (Width) | 10.43" (265 mm) |
| Physical dimensions (Depth) | 4.90" (125 mm) |
| Operating voltage | 9-16 VDC |
| Water and dust rating | IP67 |
| Operating temperature range | 4° to 149° F (-20° to 65° C) |
| Warranty | 3 years |
| Audio | |
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm less than 1% THD) | 200 W x 1 |
| Rated continuous (RMS) power (14.4 V input @ 2 Ohm less than 1% THD) | 350 W x 1 |
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs | Greater than 70 dB |
| Frequency response (+0, -1dB) | 10 Hz-500 Hz |
| Input sensitivity @ RCA inputs | Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High) |
| Current consumption (Standby) | 700-750mA |
| Fuse rating | 35A |
| Recommended fuse type(s) | AFS, AGU or MaxiFuse |
| Min. copper power/Ground wire gauge | 4 AWG wire |
| Protection circuits | Input under/over voltage Over temperature Output short circuit |
What's in the Box:
- JL Audio AP amplifier
- Four mounting screws
- Documentation
