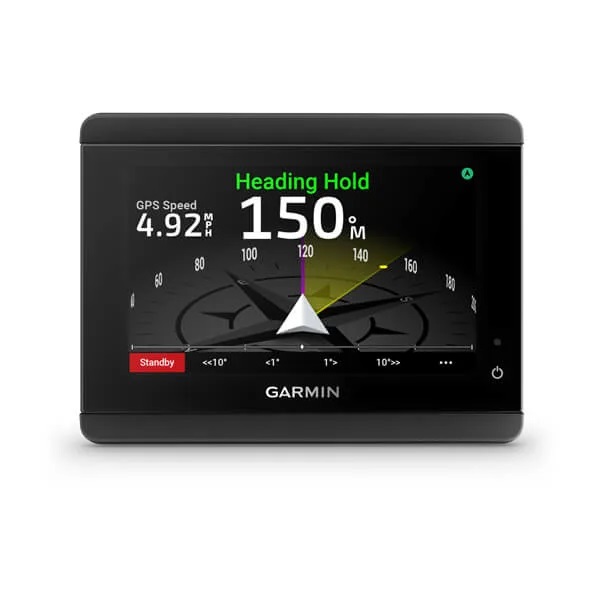

Garmin GHC™ 50 Marine Autopilot Instrument
Model: 010-02731-00
Features
- A 5" touchscreen interface with a bright display? Call it navigating with a simple touch.
- Sleek. That’s the look you get with the instrument’s edge-to-edge glass design.
- Share settings with your Garmin MFDs, and watch your integrated system come to life.
- From the Garmin Marine Network (GMN) to wireless connectivity1, there are many ways to connect to your autopilot.
- Control your boat your way with wired or wireless remote-controlled options.
When you’re ready to discover paradise, the GHC 50 autopilot instrument helps you navigate with ease — wherever the waters take you.
The bright 5" WVGA touchscreen not only looks good; its anti-glare display makes navigation simple and hassle free.
With a premium industrial design and edge-to-edge glass display, the GHC 50 autopilot instrument aligns perfectly with your high-end GPSMAP® chartplotters, creating a stunning look for your helm.
The choice is yours — control your autopilot instrument via wire or a wireless remote for a navigation experience that works best for you.
If you have multiple compatible Garmin devices on your boat, you can share information among them for a more integrated marine system.
GHC 50 works with all GHP™ Reactor autopilots, select quatix® multisport marine smartwatches, the Garmin autopilot remote and GRID™ 20 remote.
1 If used as a stand-alone autopilot, wireless connectivity only provides software updates; use the Garmin Marine Network for sharing settings and other connected features
Specifications
| General | |
| Dimensions | 4.13" x 4.51" x 2.01" (105 x 140 x 51 mm) |
| Touchscreen | yes |
| Display resolution | 800 x 480 |
| Display type | WVGA |
| Weight | 11.57 oz (328 g) |
| Water Rating | IPX7 |
| Mounting options | Flat or flush |
| Connections | |
| NMEA 2000 ports | 1 |
| Garmin Marine Network ports | 1 |
| ANT+ (Connectivity) | Yes |
| Garmin Wi-Fi Network (local connection) | yes |
| Electrical Features | |
| Power input | 9 to 32 Vdc |
| Typical current draw at 12 VDC | 220 mA |
| Maximum current draw at 12 VDC | 400 mA |
| Maximum power usage at 10 VDC | 4.9 W |
What's in the Box:
- GHC™ 50
- Black trim piece snap cover
- Protective cover
- Flush mount gasket and hardware
- Garmin Marine Network cable
- Garmin Marine Network adapter cable
- NMEA 2000® drop cable
- NMEA 2000 T-connectors and terminators
- Documentation
