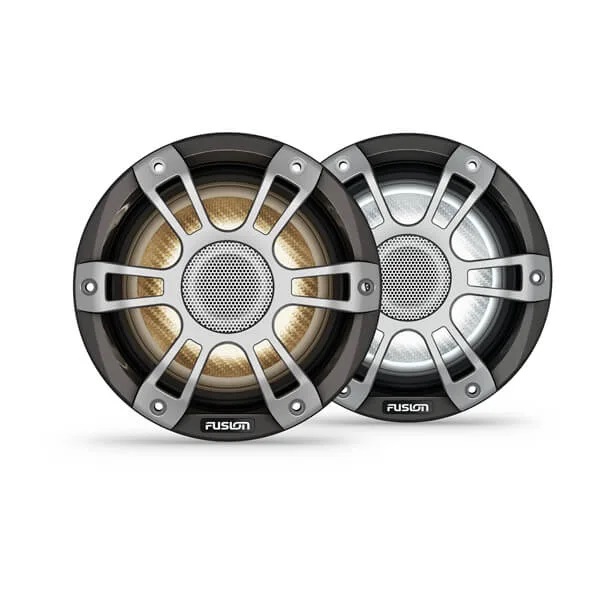

Fusion Signature Series 3i Marine 6.5" 230-watt CRGBW Coaxial Sports Gray Marine Speakers (Pair)
Model: 010-02771-11- Crystal-clear premium sound quality is suited for the marine environment.
- Water-resistant connectors provide simplified installation and superior protection.
- The rigorously tested marinized design has an IP65 rating.
- Built to last season after season, the Signature Series 3i coaxial speakers include a supported 3-year warranty.
- CRGBW LED lights set the scene on your boat.
Bring on the elements. The Signature Series 3i coaxial speakers deliver crystal-clear audio and withstand the conditions like never before.
New, water-resistant connectors now come standard. This makes installation easy and provides superior protection from the harsh marine environment.
Material enhancements and protective engineering maintain the sharp aesthetic appeal of your speakers, year after year.
Any product that bears the Fusion True-Marine seal of assurance has been designed by Fusion to withstand the harshest marine environments season after season and comes with an industry-leading 3-year warranty.
A lighter and stronger woven fiber composite produces greater sound definition at a higher volume.
These speakers are designed to work optimally with Fusion® stereo systems and amplifiers (sold separately) with custom DSP profiles. This requires the Fusion-Link™ smart-device app for setup.
Cool white, red, green, blue, warm white. You can choose a color to match the mood of your music.
Specifications| General | |
| Physical dimensions (Diameter x Depth) | 7.87" x 4.06" (200 x 103 mm) |
| Weight | 6.5" sports speaker: 2.8 lbs (1.29 kg) |
| Water and dust rating | IP65 |
| Configuration | Coaxial |
| Peak power (watts) | 230 watts |
| RMS power rating (watts) | 75 watts |
| Sensitivity (1 watt @ 1 meter) | 90 dB |
| Frequency response | 70 Hz—22 kHz |
| Nominal impedance | 4 ohm |
| Recommended amplifier power (watts RMS) | 30—90 watts/channel |
| LED lighting | yes, CRGBW |
| LED supply voltage | 10.8—16 VDC |
| LED load current @14.4 VDC (max) | 300 mA |
| Operating temperature range | 32—122 degrees F (0—50 degrees C) |
| Voice coil diameter | 1.2" |
| Cone material | CURV® Cone Technology with rubber surround |
| Tweeter type | Silk dome |
| Compass-safe distance | 122"" (310 cm) |
| Speaker connection | Flying lead with water-resistant 2-way connector, 5.9" (150 mm) |
| LED connection (sports style with LED models only) | Flying lead with water-resistant 6-way connector, 5.9" (150 mm) |
| Warranty | 3 years |
| Mounting Dimensions | |
| Mounting diameter clearance | 5.35" (136 mm) |
| Mounting depth clearance | 3.11" (79 mm) |
| Optimum Enclosure Recommendations | |
| Sealed enclosure volume (fully filled with absorption material) | 0.64 cubic ft (18 L) |
| Ported (vented) enclosure volume (lined with absorption material) | 0.88 cubic ft (25 L) |
| Port diameter | 3" (76 mm) |
| Port length | 6.4" (162 mm) |
What's in the Box:
- 6.5" 230-watt CRGBW Coaxial Sports Gray Marine Speakers (Pair)
- 12 Phillips stainless steel mounting screws, 4.2 mm x 40 mm (8 gauge x 1.6")
- 2 water-resistant cable assemblies with 2-pin connector (5.9" (150mm))
- 2 water-resistant cable assemblies with 6-pin connector (5.9" (150mm), sports style with LED models only)
- Documentation
