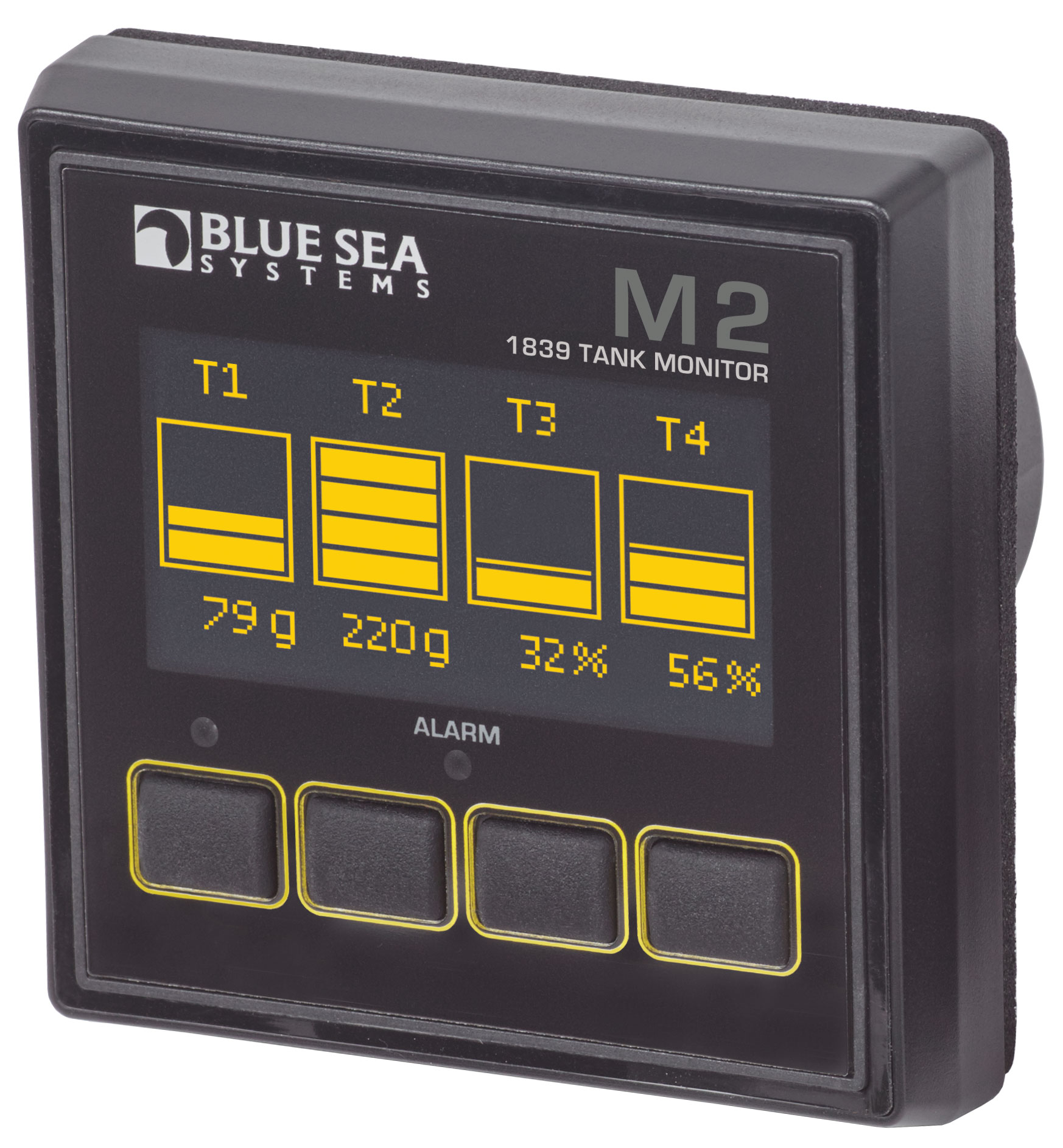

Blue Sea M2 OLED Tank Monitor
Model: 1839-BSS
Features:
- Auto-dimming, bright Organic LED display is easy to read
- 80dB alarm on all models
- Isolated 500mA MOSFET relay
- Intuitive tank level monitoring
- Monitor up to 4 tanks
- Auto calibration for unique tank shapes
- Compatible with common sending units
The M2 Organic LED Digital Monitor measures essential electrical system parameters with adjustable alarms and an auto-dimming display. The M2 Monitors include a MOSFET External Circuit Relay (ECR) which can be used to control external circuits based on any value measured by the M2.
Specifications
| Meter | Tank |
| Function | Monitors tank volume in up to 4 tanks |
| Resolution | 1% |
| Input Voltage | 7-70V DC |
| Alarm/Relay Activation | High and Low Level |
| Display Size | 55mm x 28mm |
| Range | 0.3W-1.0W |
| Tank Alarms | 80dB |
| Tank Shapes | Custom shapes, auto calibration |
What's in the Box:
- M2 Tank Monitor Display
- Surface Mount Bezel and Seal
- Surface Mount Gasket
- Surface Mount Cover
- Flat Mount Bezel
- Flat Mount Clamp
- Mounting Ring
- Mounting Nut
- Connector
- Screwdriver
