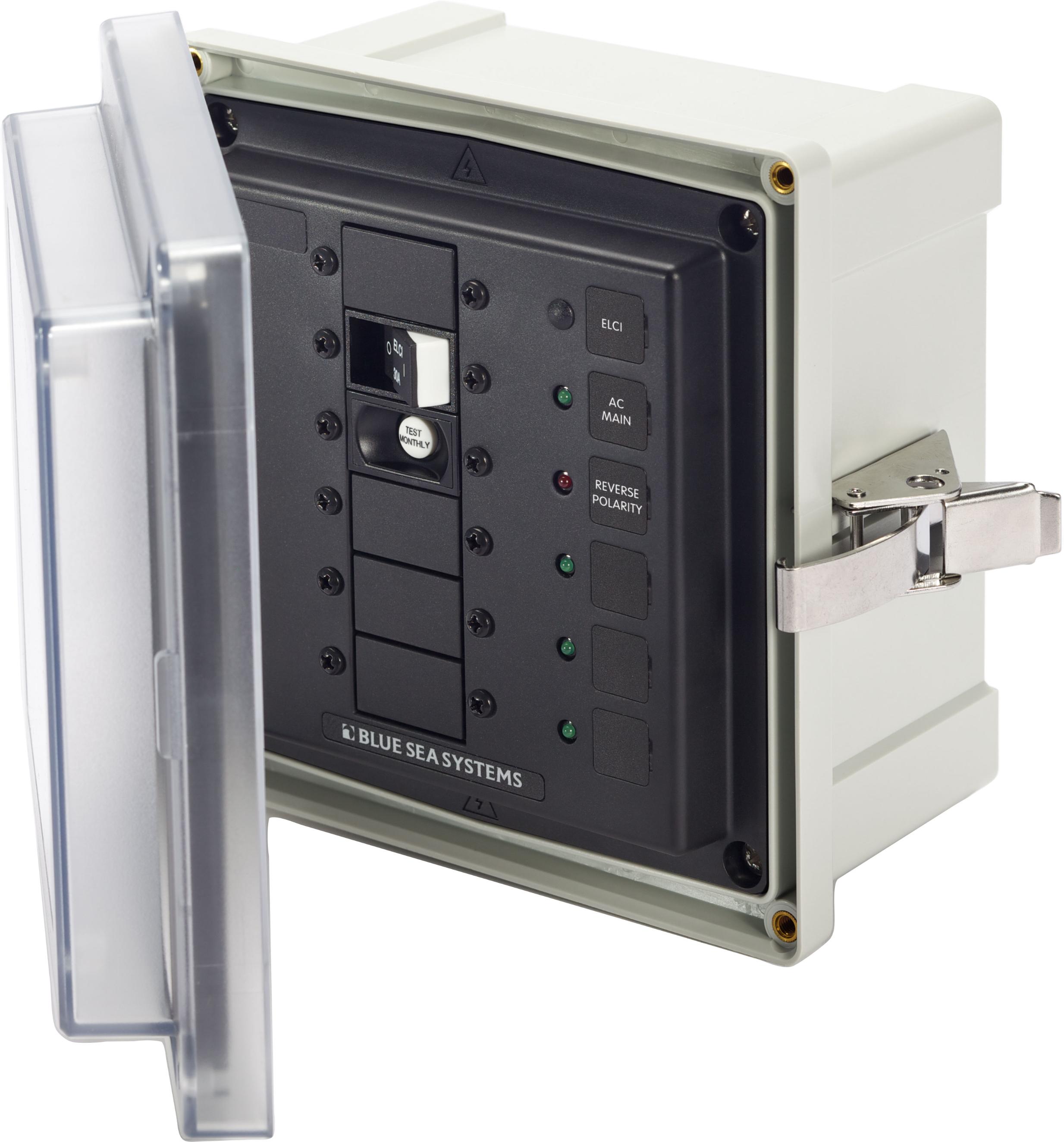

Blue Sea SMS Surface Mount System Panel Enclosure - 120V AC / 30A ELCI Main - 3 blank circuit positions
Model: 3116-BSS
Features:
- Includes one 120V AC / 30A ELCI Main and three blank positions
- Blank apertures for custom breaker loading
- Glass filled polycarbonate mounting box
- Glass filled polycarbonate mounting box
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers
- Stainless steel mounting hardware included
- Includes waterproof glands
- LED lights for back lighting and ON indication
Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet
Specifications
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Cover Screws and Hardware | 10-32 Stainless Steel |
| Enclosure Size | 6.0" x 6.0" x 4.0" |
| Exterior Overall Dimensions | 7.6" x 7.4" x 4.7" |
| Mounting Hardware | 1/4" Diameter, #12 (6 mm) |
What's in the Box:
- SMS Enclosure
- # 3124 Gland for #14-10 wire x 2
- #3125 Gland for #14-10(3 Conductor) wire x 3
- #4206 AC Label Kit
- AC Main Label
- ELCI Label
- 310210 ELCI Breaker 120 VAC 30A
- # 8034 LED - 120V AC Green (ON Indicating) x 4
- # 8066 LED - 120V AC Red (Reverse Polarity Indicating)
