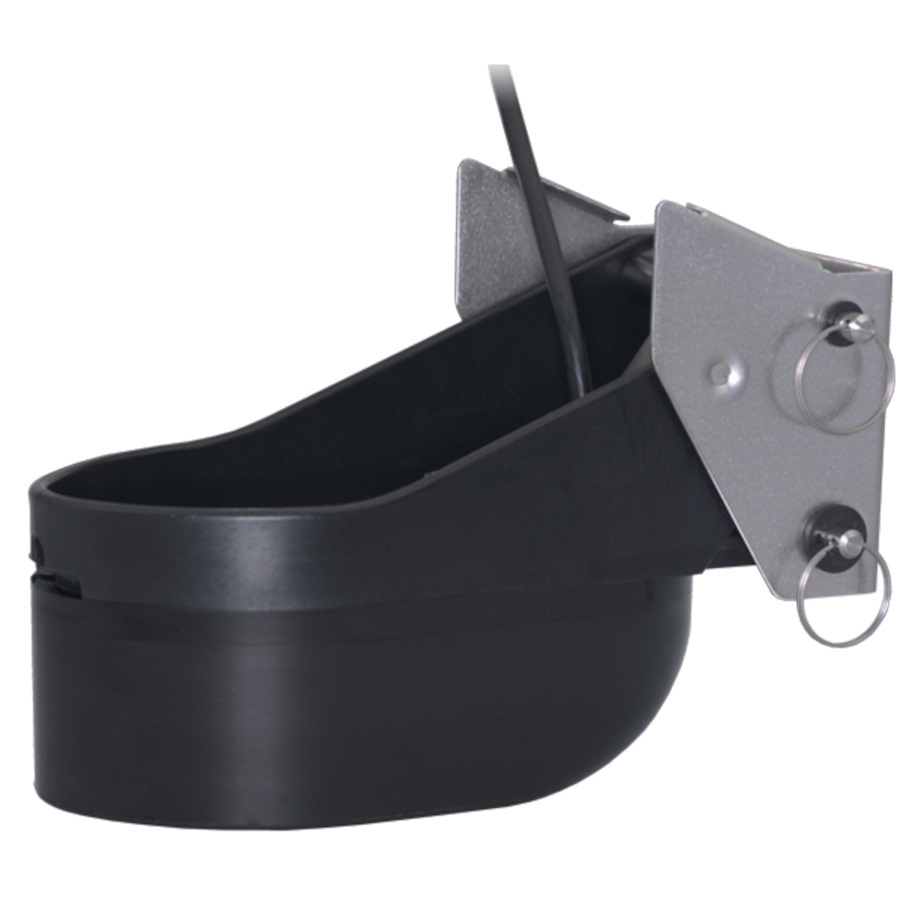

Airmar TM185MW Medium Ultra-Wide Chirp-ready Transom Mount with MMC-11R Raymarine 11-Pin MMC Cable
Model: TM185C-MW-11R
Features:
- Depth and fast-response water-temperature sensor
- 1 kW with depth tracking down to 400 m (1,300')
- Medium frequency: 60-100 kHz
- 57° to 73° beamwidth (port/starboard)
- 16° average fore/aft
- 40 kHz of total bandwidth from one transducer
- Medium frequency for superior mid-depth performance and excellent fish-target separation
- Simple installation on transom of the boat
- Great performance at boat speeds below 30 knots
- Easy maintenance and low-cost replacement
- Exclusive Xducer ID® technology
AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready TM185 Medium Ultra-Wide (MW) Transom Mount transducer. The TM185MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column. Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz.
The TM185MW Transom Mount is a 1 kW transducer housed in one of AIRMAR’s most popular housings. Transom models are best suited for small and trailered vessels where a thru hull installation is not practical. Simple to install and ideal for small trailered vessels where a thru-hull may interfere with loading.
Specifications
Power Rating | 1 kW |
Transom Angle | 2° to 22° |
Functions | Depth, Temperature |
Acoustic Window | Urethane |
Cable-Length | 9 m (30') |
Freq Med Wide | 60-100 kHz |
Housing | Urethane/Stainless Bracket |
Max Depth | 400 m (1300') |
Medium-Wide Beamwidth | 57° to 73° beam p/s 16° average f/a |
Mounting Style | Transom |
Single or Dual Frequency | CHIRP-Ready Single-Band |
Weight | 4.2 kg (9.2 lb.) |
What's in the Box:
- TM185MW Medium Ultra-Wide Chirp-ready Transom Mount
- MMC-11R Raymarine 11-Pin MMC Cable
