Airmar 20 Degree Tilt Medium Chirp Ultra Wide With Furuno 12-pin MMC - SS175C-20-MW-12F

Price: $1,834.38
No reviews yet Write a Review
SKU:
AIRSS175C20MW12F
Condition:
New
Shipping:
Calculated at Checkout

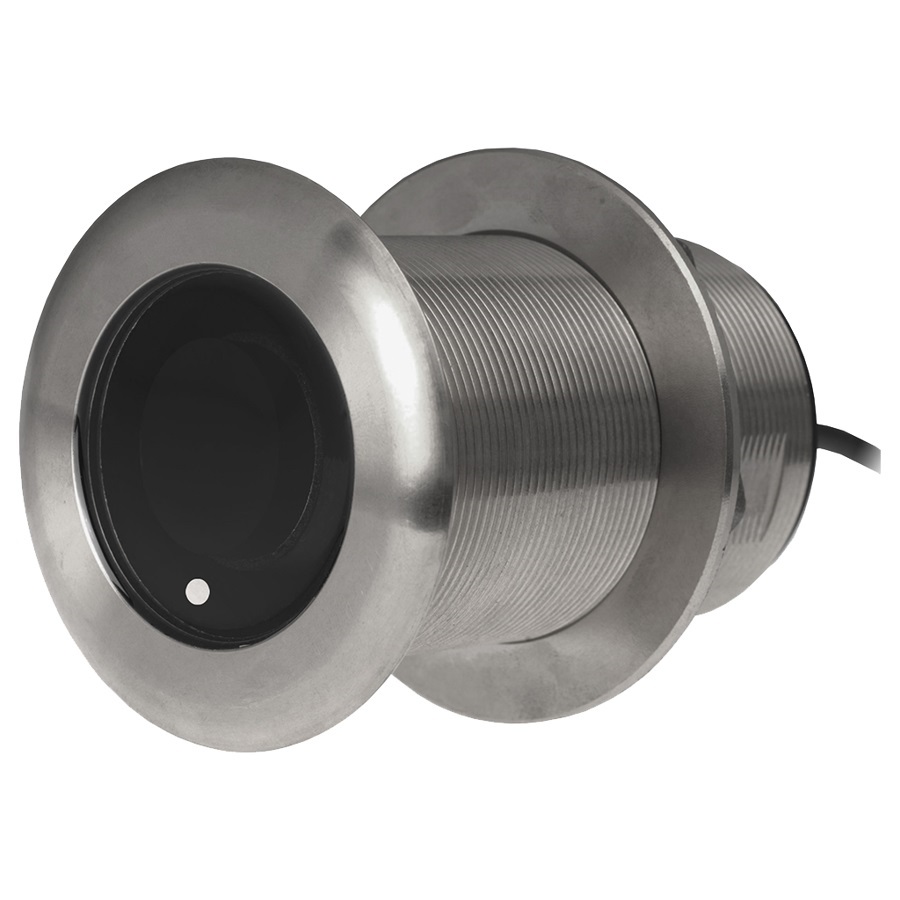

Airmar SS175MW Medium Ultra-Wide 20 deg Tilted Element™ Thru-Hull - With MMC-12F Furuno 12-Pin Mix-N-Match Cable

Model: SS175C-20-MW-12F

Features:

  • Fixed 20° tilted version for 16° to 24° hull deadrise
  • Depth and fast-response water-temperature sensor
  • 1 kW with depth tracking down to 400 m (1,300#39;)
  • Medium frequency: 60-100 kHz
  • 57° to 73° beamwidth (port/starboard)
  • 16° average fore/aft
  • 40 kHz of total bandwidth from one transducer
  • Medium frequency for superior mid-depth performance and excellent fish-target separation
  • Low-profile, thru-hull housing yields good resolution at speed when installed properly
  • Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready SS175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The SS175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

The SS175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20°, 12° or 0° angle. Because the transducer is installed almost flush to the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.

Specifications

Power Rating 1 kW
Max Deadrise Angle 24°
Housing Stainless Steel
Functions Depth, Temperature
Hull Material All hull materials
Max Vessel LOA Up to 11 m (36')
Hole Size 95 mm (3-3/4")
Mounting Style Tilted Element Thru-Hull
Acoustic Window Urethane
Cable-Length 9 m (30')
Max Depth 400 m (1300')
Medium Frequency 60-100 kHz
Medium Frequency Beamwidth 57° to 73° (Port/Starboard) X 16° average (Fore/Aft)
Single or Dual Frequency CHIRP-Ready Single-Band
Water Temperature -10° to 40°C (14° to 104°F)
Weight 2.7 kg (6 lb.)


What's in the Box:

  • SS175C-20-MW-MM Medium CHIRP 20° Tilted Element
  • MMC-12F Furuno 12-Pin Mix-N-Match Cable
