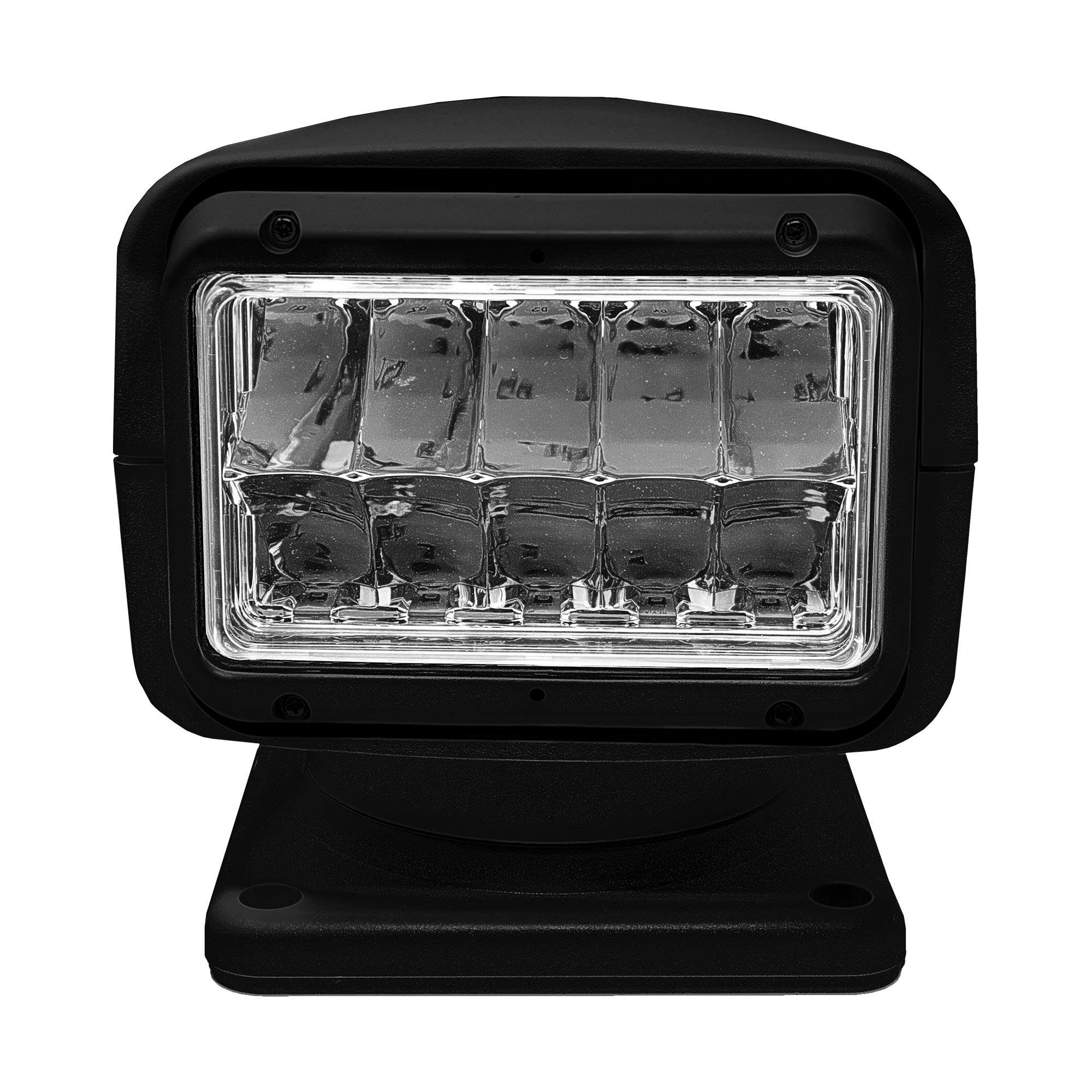

ACR RCL95 Black LED Spotlight With Wired Point Pad And
Model: 1959
Features:
- 10 High Flux LEDs (OSRAM)
- 460,000 Candela, Max Beam Distance 4,501 Feet (1,372 m)
- Wireless Handheld Remote and Wired Dash Mount Joystick (Both Included)
- 360o Continuous Rotation and 135o Tilt
- Auto-home return when off
- 4 Amps (12V) to 2 Amps (24V)
- Efficient, long life LED’s - 50,000 operating hours
- UV & Weather Resistant
- Simple Installation (12-24V Power Connection and 5M Wired Joystick Control Cable)
The all new RCL-95 LED searchlight was designed for performance and simplicity. With an industry best 460,000 candelas using 10 High Flux (50W) LEDs, you have visibility over ¾ of a nautical mile to light the way to your destination. The RCL-95 LED’s sleek design makes it an attractive and cost-effective choice for small to medium sized recreational powerboats as well as light commercial vessels.
Use the RCL-95 LED searchlight with either the wired dash mount joystick control or the wireless handheld remote to rotate the light 360 degrees continuously at either a fast or slow speed without the hassle of a hard stop. With an 8 degree beam angle, the light can tilt an impressive 135 degrees to make lighting draw bridges, buoys and docks a breeze. The auto-home feature will conveniently park the searchlight back at the desired starting location each time you turn the searchlight off. The RCL-95 is weather resistant with the electronics located in the IP68 water-resistant light head instead of the base for increased protection. The ASA housing and lens are sealed against the elements for years of trouble-free operation.
Specifications
ACR Product Number | PN 1959 (Black) |
Size | 5.9" x 7.1" x 7.5"" (15 x 18 x 19 cm) |
Weight | 4.2 lbs. (1.9 kg) (searchlight only) |
Material | Acrylonitrile Styrene Acrylate (ASA) Housing for improved weather resistance |
Color | Black |
Operation | Wireless Handheld Remote (included) / 433.92 MHz or Wired Dash Mount Joystick (included with 16.4’ (5m) cable) |
Peak Beam Candle Power | 460,000 |
Beam Maximum Distance | 4,501 ft (1,372 meters) |
Beam Pattern / Angle | Spot / 8o |
Elevation Angle | 135° |
Rotation | 360° Continuous |
Rotation Speed | Fast 19° per second, slow 12° per second |
Elevation Speed | 11° per second |
Lamp | LED 50W (OSRAM x 10) / 50,000 hour life |
Accessories | Wireless Dash Mount Remote (PN 9635)16.4’ (5 m) Extension Cable for Wired Controller (PN 9638)Replacement GOLIGHT® Mounting Plate (PN 9639) — Used when replacing GOLIGHT® Stryker or RadioRay Searchlights (will not work for RadioRay portable model)* |
Footprint Diameter (distance between mounting holes) | 4.92" x 4.92" (12.5 x 12.5 cm) |
Total Footprint (dimensions of searchlight base) | 6.06" x 6.06" (15.4 x 15.4 cm) |
Power Requirements | 12 or 24 V DC |
Warranty | 2 Years |
